Very Fine Spray Hydraulic Atomizating Nozzles for Evaporative Cooling

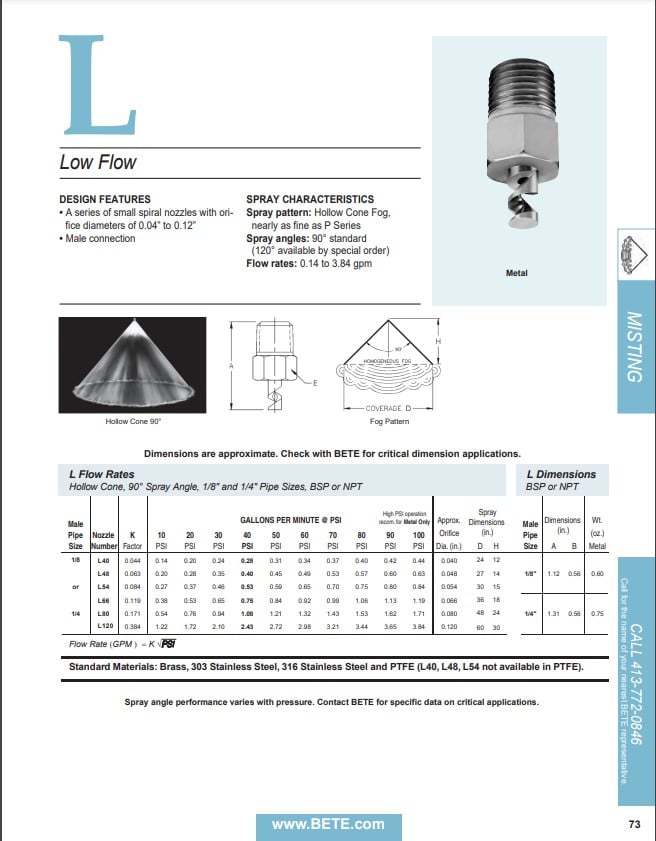

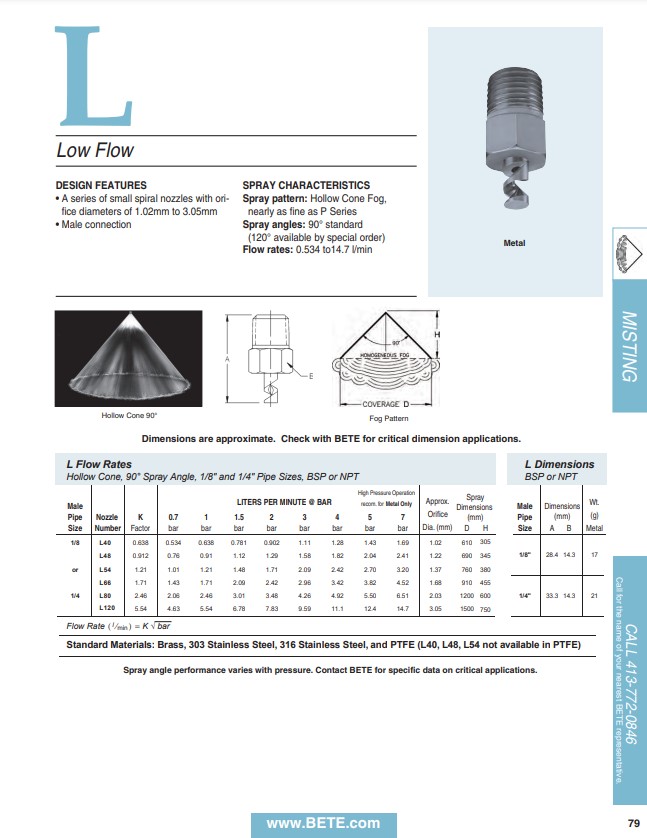

The BETE L spray nozzle is a series of low flow spiral nozzles with flow rates 0.14 to 3.84 gpm (0.53 to 14.5 L/min). It also has higher flow than the BETE PJ with fine atomization. The BETE L spray nozzle can produce high flow misting performance (very fine hollow cone fog) at low pressure.
Design Features of BETE L Spray Nozzles
- A series of small spiral nozzles with orifice diameters of 0.04″ (1.02mm) to 0.12″ (3.05mm)
- Male connection
Spray Pattern of BETE L Spray Nozzles
- Hollow Cone Fog, nearly as fine as BETE P series
How Spray Pattern is Achieved
- Misting nozzles create a very fine mist or fog. Droplets are typically small enough that buoyancy is significant compared to gravity, allowing drops to appear to float.
| Available Spray Angle | Flow Rate Range |
| 90° | 0.139 to 8.59 gpm |
| Available Connection Types | Materials |
|
Brass, 303, 316, 317L, 310, 321, 347, Nickel Alloy C-276, Nickel Alloy C-22, PTFE |
Applications for the BETE L Spray Nozzles
- Coating
- Cooling: Evaporative
- Duct Control: Air Handling Ducts
- Duct Control: Area
- Fire Protection: Halon Replacement
- Fire Protection: Special
- Humidification
- Scrubbing: Conditioning
- Washing: Conveyor
- Standard Materials: Brass, 303 Stainless Steel, 316 Stainless Steel and PTFE
