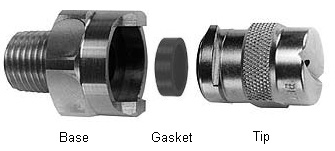

BETE Interchangeable Nozzle Tips With Base and Gasket
Design Features of BETE EZWL Quick Connect Full Cone Nozzles
- Nozzles can be changed in seconds without tools
- Three-part nozzle, base, gasket and interchangeable tip
- Exclusive ramped engagement for efficient, automatic alignment
- Threaded adaptors will accommodate other standard BETE nozzles. Shut-off plugs are also available
- Sanitary EZs are available with weld connection and no knurling
BETE EZWL Quick Connect Spray Characteristics
| Available Spray Angles | Flow Rate Range |
| 30 - 120° | 0.0937 to 19.7 gpm |
| Available Connection Types | Materials |
|
Brass, 303, 316 |
Standard Materials (EZFF; EZNF; EZSPN) : 301 Stainless Steel; 316 Stainless Steel; Brass; Viton Gaskets Standard
Standard Materials (EZTF) : Brass; Viton Gaskets Standard. 316 Stainless Steel available on request.
Standard Materials (EZWL; EZWT) : 303 Stainless Steel; 316 Stainless Steel; Brass; Viton Gaskets Standard
How Spray Pattern is Achieved on EZWL Full Cone Nozzles
- Atomization is achieved by the water being spun inside the nozzle and then exiting an orifice
- Produces medium to coarse droplet size
- More uniform pattern than spiral nozzles
