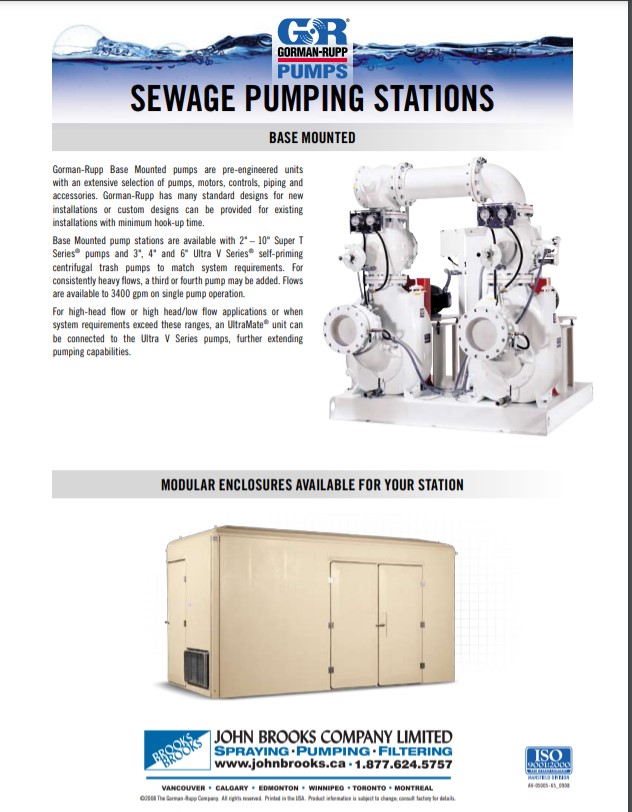

Gorman-Rupp ReliaSource base mounted pump stations are pre-engineered units with an extensive selection of pumps, motors, controls, piping and accessories. Gorman-Rupp has many standard designs for new installations, or we can custom design for existing installations with minimum hook-up time. Base mounted pump stations are available with 2″, 3″, 4″, 6″, 8″ or 10″ T Series or Super T Series pumps to match system requirements. For consistently heavy flows, a third or fourth pump may be added. Flows shown are for single pump operation. For high head/low flow, we offer standard staged designs.
Gorman-Rupp ReliaSource Base Mounted Lift Station Specifications:
| Size: | 2″ (50 mm) 3″ (75 mm) 4″ (100 mm) 6″ (150 mm) 8″ (200 mm) 10″ (250 mm) |
| Max Capacity: | 3,400 GPM (215 lps) |
| Max Head: | 320′ (98 m) |
| Max Solids: | 3″ (76 mm) |
| Max Temperature: | 160 F (71 C) |
| Motor- Voltage: | 200 V 3P 230 V 3P 460 V 3P 575 V 3P |
| Motor- Cycles: | 60 Hz |
| Horsepower: | 2 HP – 150 HP |
Applications Include:
- Pumping sewage
- Sewage lift stations
- Water booster stations
- Industrial sewage
- Self-priming pumps
- Solids handling pumps
- Wastewater pumps
- Sump pumps
Interchangeable With:
- Flygt
- Cornell
- Pioneer,
- Weir Self Priming
Gorman-Rupp ReliaSource Base Mounted Lift Station Features:
Single Source Responsibility: Gorman-Rupp designs, engineers and manufactures the entire pumping system to ensure that the system meets your requirements and performs reliably year after year. If there is a problem with the system you only have to make one call. Gorman-Rupp is responsible for the entire system, from pumps and controls to the lights and fans in the enclosures.
Super T Series Pumps: Gorman-Rupp self-priming centrifugal solids-handling Super T Series pumps are specifically designed for sewage and industrial wastewater handling applications. The heavy-duty construction and easy-to-service design have made Gorman-Rupp T Series pumps the standard of the industry.
Controls: The Gorman-Rupp team of electrical, mechanical and hydraulic engineers work closely throughout the development of each pumping system to ensure that the entire hydro-electrical system works in harmony to meet your system requirements – accurately and reliably. All Gorman-Rupp controls are manufactured of the highest quality components and are available U.L. and C.S.A. listed (not standard).
