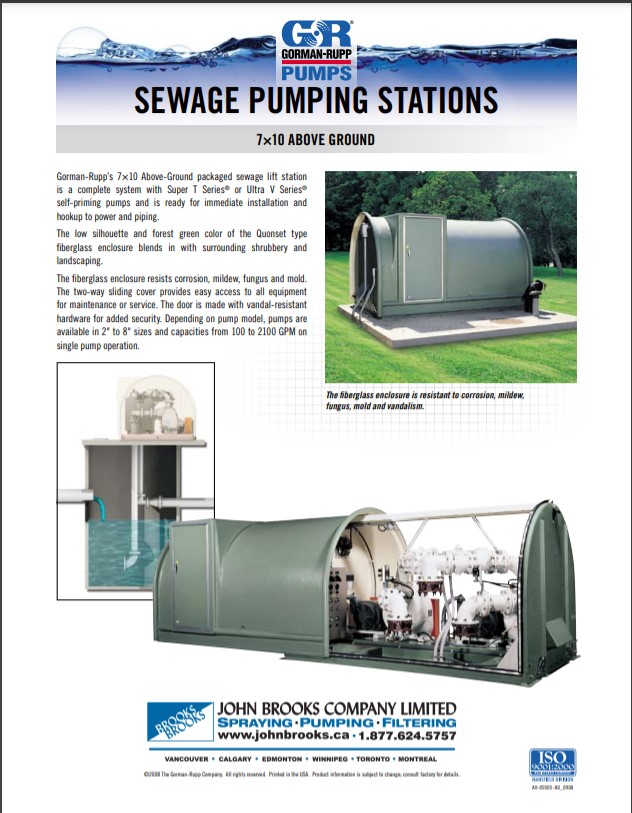

The streamlined Quonset enclosure of the Gorman-Rupp ReliaSource 7×10 Above-Ground Lift Station provides easy access to two powerful Gorman-Rupp self-priming pumps and robust, custom-engineered controls. With its two-way sliding cover, pump maintenance and service are a breeze. And with its 100% Gorman-Rupp construction, years of reliable performance are a given. This packaged sewage lift station accommodates a variety of pump sizes and offers a range of capacities to meet your specific heavy solids-handling requirements. Like all Gorman-Rupp ReliaSource lift stations, the 7×10 above-ground model is fully customizable and comes ready for immediate installation and hookup to power and piping.
The low silhouette and forest green color of the Quonset type fiberglass enclosure blends in with surrounding shrubbery and landscaping. The fiberglass enclosure resists corrosion, mildew, fungus and mold.
The two-way sliding cover provides easy access to all equipment for maintenance or service. The door is made with vandal-resistant hardware for added security. Depending on pump model, pumps are available in 2″ to 8″ sizes and capacities from 100 to 2100 GPM on single pump operation.
Gorman-Rupp ReliaSource 7×10 Above-Ground Lift Station Specifications:
| Size: | 3″ (75 mm) 4″ (100 mm) 6″ (150 mm) 8″ (200 mm) |
| Max Capacity: | 2,500 GPM (158 lps) |
| Max Solids: | 3″ (76 mm) |
| Max Temperature: | 160 F (71 C) |
| Motor- Voltage: | 200 V 3P 230 V 1P 230 V 3P 460 V 3P 575 V 3P |
| Motor- Cycles: | 60 Hz |
| Horsepower: | 2 HP – 50 HP |
Applications Include:
- Pumping solids
- Pumping sludge
- Pumping waste water
- Pumping industrial waste water
- Pumping slurries
- Sump pump
- Pumping drilling mud
- Pumping frac water
- Pumping waste oil
- De-watering pump
Interchangable With:
- Flygt
- Cornell
- Pioneer
- Weir Self Priming
Gorman-Rupp ReliaSource 7×10 Above-Ground Lift Station Features:
Pumps:
- Accommodates two Gorman-Rupp T Series, Super T Series or Ultra V Series self-priming centrifugal, heavy duty solids-handling pumps
- Specifically designed for sewage and industrial waste water handling applications
- Heavy-duty construction and easy-to-service design
- Range of motor sizes to meet your unique requirements.
Enclosure:
- Durable, fiberglass construction resists corrosion, mildew, fungus, mold and UV rays
- Provides a superior barrier to caustic or acidic atmospheres
- Quonset design, low-silhouette and forest green color blends in with surrounding shrubbery and landscaping
- Two-way sliding cover provides convenient pump and control access
- Vandal-resistant door hardware for added security
Controls:
- Custom engineered, NEMA-rated automatic controls to operate pump function and warning systems
- Choose from a variety of adjustable pressure controls, H-O-A selectors, overload reset buttons and circuit breakers for station accessories
- Clearly marked field connections for fast and efficient electrical hook-up
- Available U.L. and C.S.A. listed
Warranty:
- Industry leading, 60-month warranty
- Covers the entire packaged system – enclosure, pumps, valves and controls
