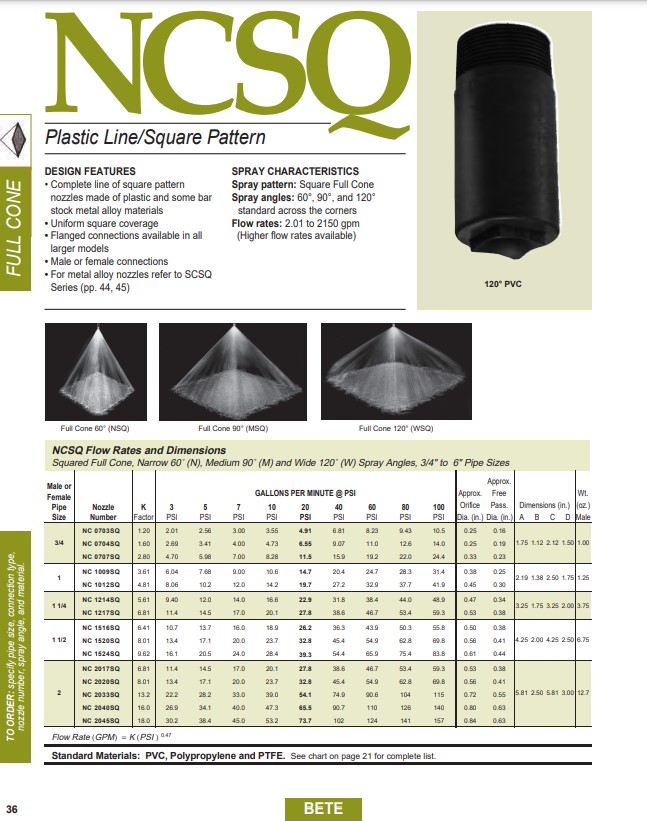

Uniform Square Spray Pattern Coverage Nozzles
Design Features
- Uniform square spray coverage
- Flanged connection available in larger models
| Available Spray Angles | Flow Rate Range |
|
60 - 120°
|
2.01 to 2140 gpm |
| Available Connection Types | Materials |
|
PVC, Polypropylene, PTFE |
How Spray Pattern is Achieved
- The square spray pattern generated by the NCSQ nozzle will not line up corner to corner with the "points" of the nozzle nose. When viewed from above, the square pattern will be rotated 10° - 15° counterclockwise. The figures above illustrate the angle of rotation of the pattern. R = 10° - 15°
