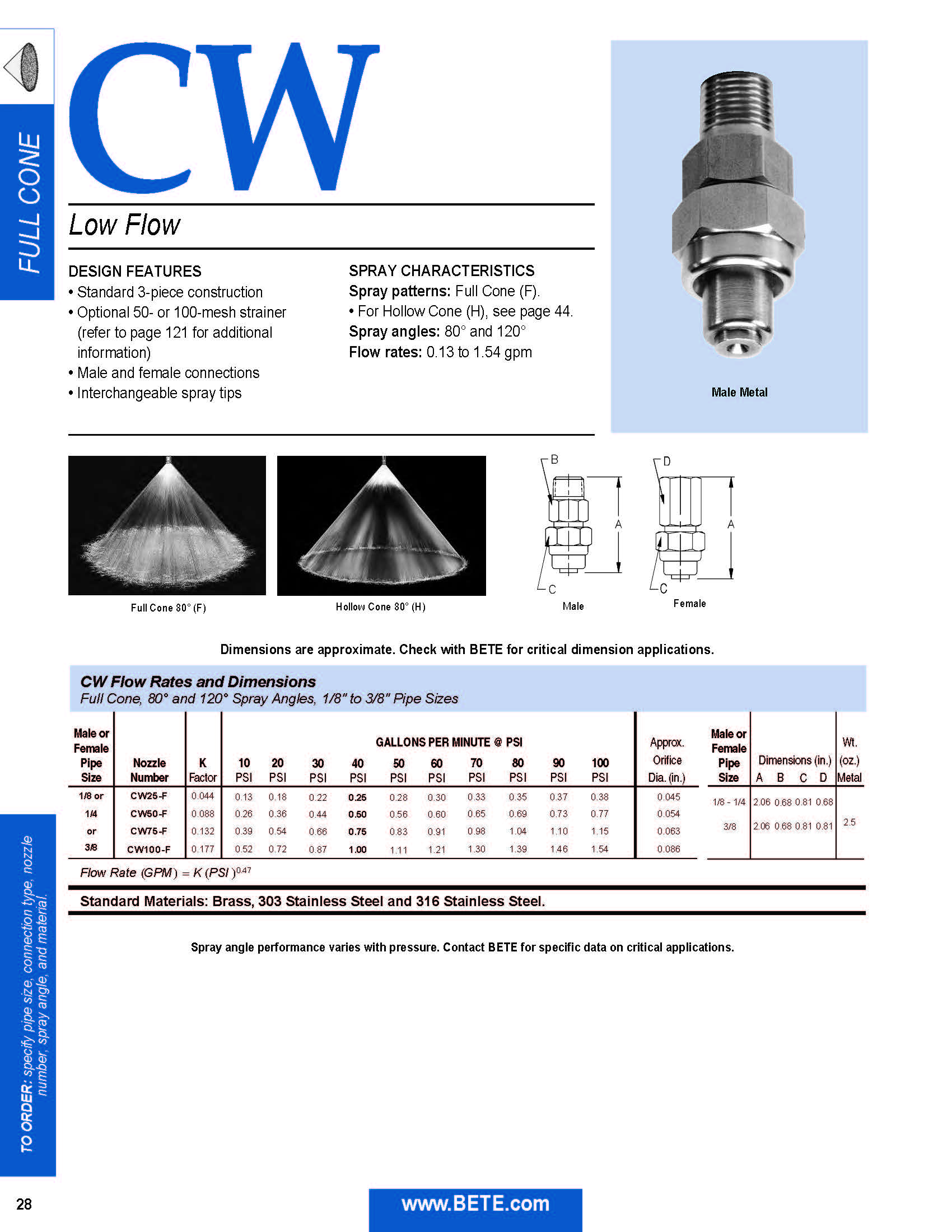

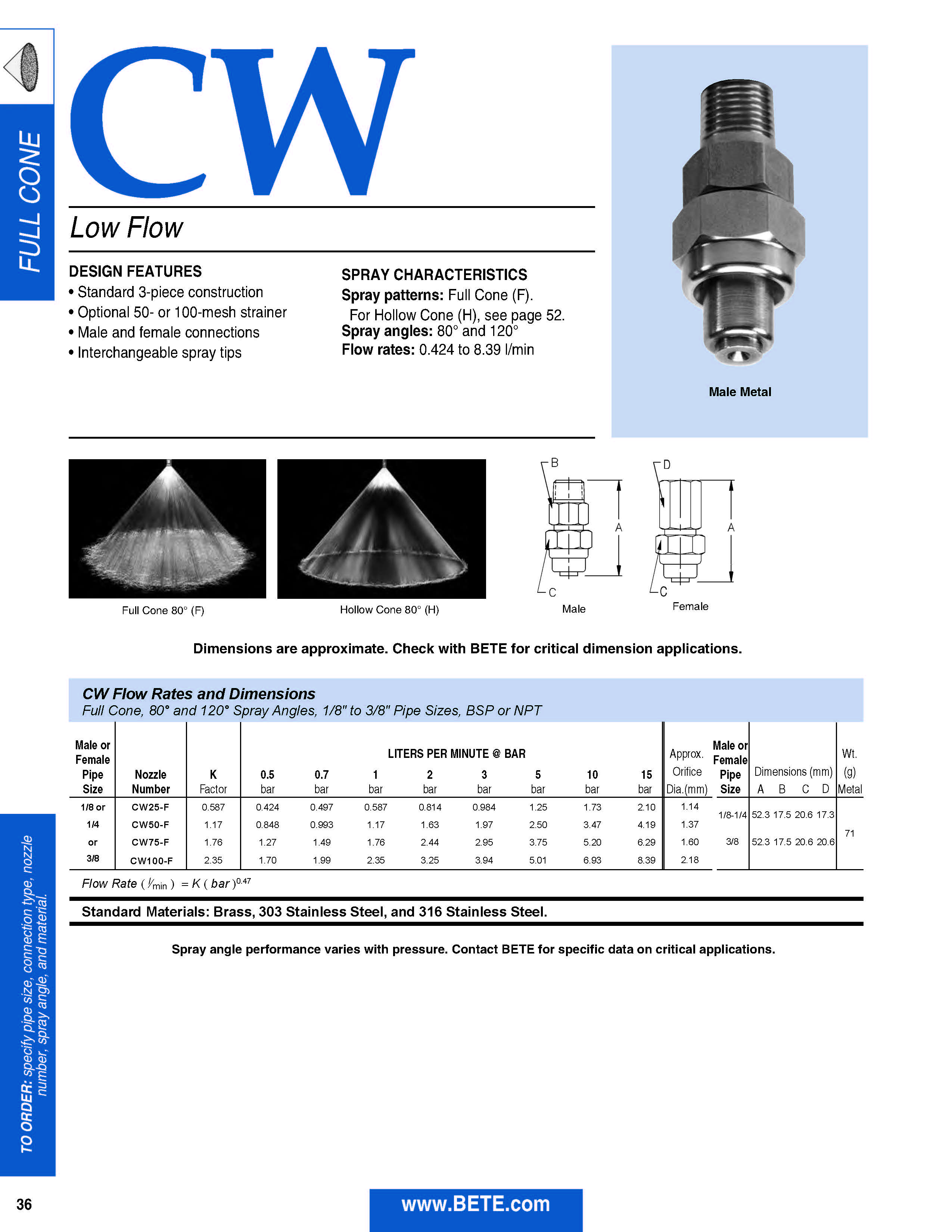

BETE Low Flow Full Cone for Quick Change
Design Features of BETE CW Full Cone Nozzles
- Standard three-piece construction
- Optional 50 – or 100- mesh strainer
- Protective cover available
- Male and female connections
- Interchangeable spray tips
BETE CW Full Cone Nozzles Spray Characteristics
- Spray Patterns: Full Cone (F)
- Standard Materials: Brass, 303 Stainless Steel, and 316 Stainless Steel
| Available Spray Angles | Flow Rate Range |
| 80 - 120° | 0.0937 to 2.14 gpm |
| Available Connection Types | Materials |
|
Brass, 303, 316 |
Applications for BETE CW Nozzles
- Fire Protection
Full Cone 80° (F)
Hollow Cone 80° (H)
*Spray angle performance varies with pressure
How Spray Pattern is Achieved on BETE CW Full Cone Nozzles
- A hollow cone nozzle sprays fluids in a ring-like pattern around a given radius and the spray exits on the same axis it enters in the axial design
- For a full cone nozzle, atomization is achieved by the water being spun inside the nozzle and exiting an orifice
- An insert is used to create the spray pattern
- Produces medium to coarse droplet size
- More uniform pattern than spiral nozzles
