The Verderflex Ds500 is an industrial peristaltic pump designed for metering, dosing and transfer (fluid/chemical) with a focus on accuracy and minimum downtime, at pressures of up to 7 bar(g).
The Verderflex Ds500 tube pump uses peristaltic technology to make a difference and look at whole life costs of the application. It does so, without the need for additional valves or complicated pipework required by other systems. With the nature of peristaltic it performs on abrasives, slurries, or mediums with viscosity which may affect other technologies. A greater accuracy and less chemical usage saves money. There is also the advantage of minimal maintenance ‘click and go’ for the servicing approach with the cartridge change – the main wearing component. And when coupled with RA (Remote Assistant), monitoring for IoT can provide performance feedback to ensure downtime is managed and minimized.
Benefits
- Accurate flow performance from 0.1 to 500 ml/min. and pressures of up to 7 bar(g).
- Space saving footprint with secure mounting for easy integration into pump systems.
- Maximum working time/minimum downtime with tool free cartridge changes in situ.
- Minimal fluid ‘live’ containment ensures user safety and reduced clean up requirement.
- Repeatability of up to ±1% accuracy with reduced pulsation flow.
- No valves - non clogging, no degassing required, abrasion resistant.
- Full colour 4.3” TFT touchscreen.
Technical Data
| Maximum Flow | 500 ml/min |
| Maximum Discharge Pressure | 7 bar |
| Accuracy | up to +/- 1% |
| Speed | 0.01 - 65 rpm |
| Maximum Temperature | 70° C |
| Weight | 7.5 Kg |
| Turn Down Ratio | 5000:1 |
| Control Options | 4-20 mA |
| Protection Class | IP66, NEMA Type 4X |

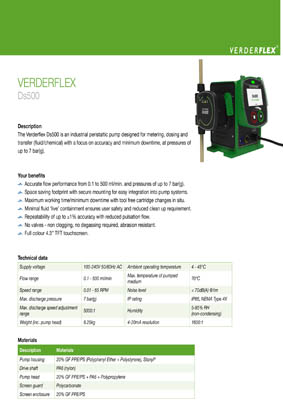

| Download Datasheet | Click to Download |
