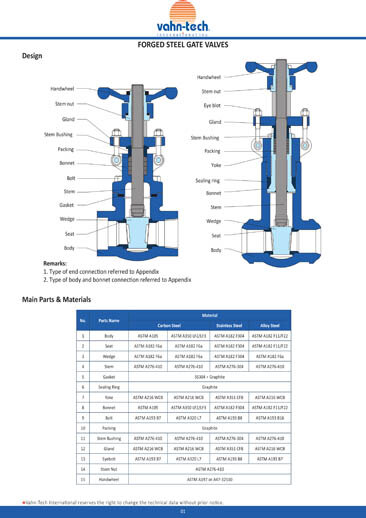

Vahn-Tech offers a large range of configurations of API 602 Forged Gate Valves :
- Bolted or Welded Bonnet
- Pressure Seal Bonnet
- Threaded Connection
- SW
- BW
- Extended Nipple
- Welded or Integral Flanges
- etc.
Specifications
| Design Standard | API 602 / BS 15761 |
| Size Range | ½” – 2” |
| Pressure Rating | Class 150 – 2500 Class 800 |
| Working Temperature | -196˚C ~ +650˚C -320˚F ~ +1200˚F |
| End Connection |
ANSI B16.5 - Flange ASME B16.25 - Butt-Weld ASME B16.11 - Socket-Weld / Threaded Ends |
| Face-to-Face | ASME B16.10 |
| Test & Inspection | API 598 / API 6D |
