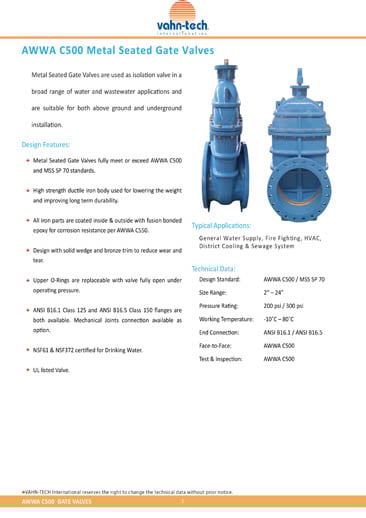

Features
- Metal Seated Gate Valves fully meet or exceed AWWA C500 and MSS SP 70 standards.
- High strength ductile iron body used for lowering the weight and improving long term durability.
- All iron parts are coated inside & outside with fusion bonded epoxy for corrosion resistance per AWWA C550.
- Design with solid wedge and bronze trim to reduce wear and tear.
- Upper O-Rings are replaceable with valve fully open under operating pressure.
- ANSI B16.1 Class 125 and ANSI B16.5 Class 150 flanges are both available. Mechanical Joints connection available as option.
- NSF61 & NSF732 certified for Drinking Water.
- UL Listed Valve.
Specifications
| Design Standard | AWWA C500 / MSS SP70 |
| Size Range | 2” – 24” |
| Pressure Rating | 200 psi |
| Working Temperature | -10˚C ~ +80˚C 14˚F ~ +176˚F |
| End Connection | ANSI B16.1 ASME B16.5 AWWA C111 (MJ) |
| Face-to-Face | AWWA C500 / MSS SP70 |
| Test & Inspection | AWWA C500 |
| Materials | Body : Ductile Iron Wedge : Ductile Iron Seat : Bronze |
