SANDPIPER S15 Non-Metallic Standard Duty Ball Valve Pumps are ideally suited for intermittent, on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with Elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

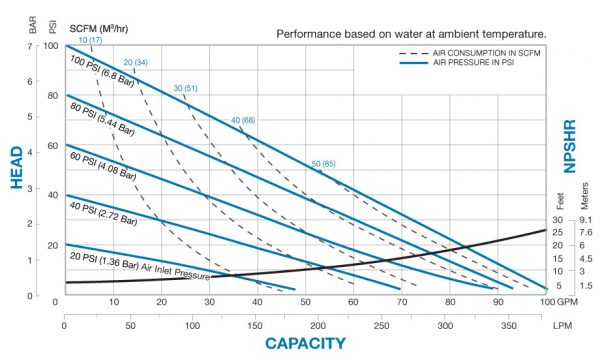

SANDPIPER S15 Non-Metallic – Performance Curve
.jpg?width=600&name=S15nm_curve-600x359%20(1).jpg)
SANDPIPER S15 Non-Metallic – Specifications
|
Port Size :
|
1 1/2″ ANSI Flange
PN10 25mm DIN Flange
|
| Capacity : |
0 to 100 gpm (378 lpm)
|
|
Air Distribution Valve :
|
No-lube, no-stall design
|
|
Solids-Handling :
|
Up to .47″ (12 mm)
|
|
Heads Up To:
|
100 psi or 231 ft. of water (7 bar or 70 meters))
|
|
Displacement/Stroke :
|
.43 gallons (1.63 liters)
|
|
Max Operating Pressure :
|
100 psi (7 bar)
|
|
Shipping Weight :
|
Polypropylene: 82 lbs. (37 kg)
PVDF: 112 lbs. (51 kg)
Conductive Polypropylene: 85 lbs. (38 kg)
Polypropylene Spill Containment: 149 lbs. (68 kg)
PVDF Spill Containment: 194 lbs. (88 kg)
|
Features and Benefits of the Standard Duty Ball Valve Pumps
- Light Weight & Portable – Weights as low as 3 lbs (1 kg).
- All Bolted Construction – Durable & high pressure capable
- Top Discharge – For pumping out of tough areas
- Ball Check Valves – Provides powerful, high flow pumping
- Diaphragm Connecting Rods – Reliable and consistent diaphragm control
- ESADS + Plus Air Valve – Externally Serviceable Air Distribution System
- Dynamic Manifold Connections – 90° – 180° rotation options
- Certifications Available – CE, ATEX and ABS
