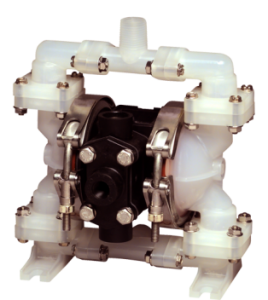

SANDPIPER PB1/4″ Non-Metallic Standard Duty Ball Valve AODD Pumps are ideally suited for intermittent, on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with Elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

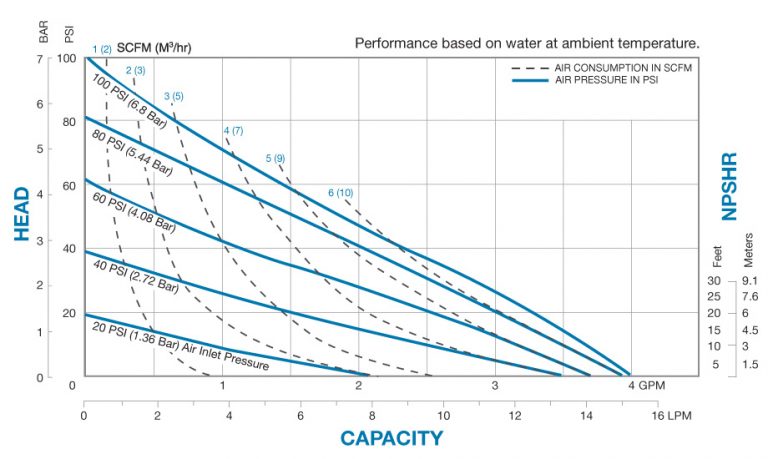

SANDPIPER PB1/4″ Non-Metallic – Performance Curve

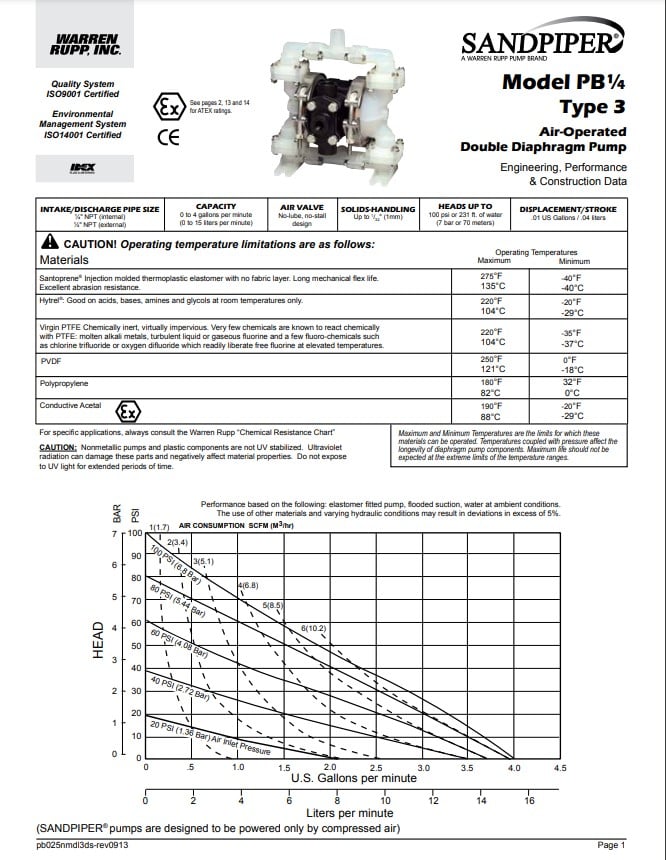

SANDPIPER PB1/4″ Non-Metallic – Specifications
|
Port Size :
|
1/4″ NPT Internal; 1/2″ NPT External |
| Capacity : | 0 to 4 gpm (15 lpm) |
|
Air Distribution Valve :
|
No-lube, no-stall design
|
|
Solids-Handling :
|
1/32″ (1 mm)
|
|
Heads Up To:
|
100 psi or 231 ft. of water (7 bar or 70 meters)
|
|
Max Operating Pressure :
|
100 psi (7 bar)
|
|
Shipping Weight :
|
Polypropylene: 4 lbs. (2 kg)
PVDF: 5 lbs. (2.5 kg)
|
Features and Benefits of the Standard Duty Ball Valve Pumps
- Light Weight & Portable – Weights as low as 3 lbs (1 kg).
- All Bolted Construction – Durable & high pressure capable
- Top Discharge – For pumping out of tough areas
- Ball Check Valves – Provides powerful, high flow pumping
- Diaphragm Connecting Rods – Reliable and consistent diaphragm control
- ESADS + Plus Air Valve – Externally Serviceable Air Distribution System
- Dynamic Manifold Connections – 90° – 180° rotation options
- Certifications Available – CE, ATEX and ABS
