SANDPIPER E02 Metallic Standard Duty Ball Valve Pumps are ideally suited for intermittent, on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with Elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

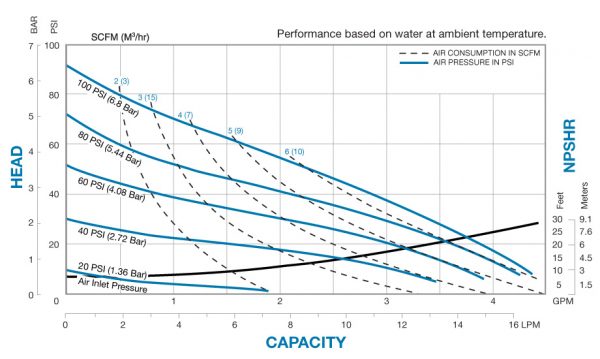

SANDPIPER E02 Metallic – Performance Curve
.jpg?width=600&name=E02m_curve-600x359%20(1).jpg)
SANDPIPER E02 Metallic – Specifications
|
Port Size :
|
1/4″ BSP Parallel |
| Capacity : | 0 to 4.75 gpm (18 lpm) |
|
Air Distribution Valve :
|
No-lube, no-stall design
|
|
Solids-Handling :
|
1/16″ (1 mm)
|
|
Heads Up To:
|
125 psi or 298 ft. of water (8.6 bar or 88 meters)
|
|
Displacement/Stroke :
|
.048 gallons (.015 liters)
|
|
Max Operating Pressure :
|
125 psi (8.6 bar)
|
|
Shipping Weight :
|
Stainless Steel: 8.82 lbs. (4.0 kg) |
Features and Benefits of the Standard Duty Ball Valve Pumps
- Light Weight & Portable – Weights as low as 3 lbs (1 kg).
- All Bolted Construction – Durable & high pressure capable
- Top Discharge – For pumping out of tough areas
- Ball Check Valves – Provides powerful, high flow pumping
- Diaphragm Connecting Rods – Reliable and consistent diaphragm control
- ESADS + Plus Air Valve – Externally Serviceable Air Distribution System
- Dynamic Manifold Connections – 90° – 180° rotation options
- Certifications Available – CE, ATEX and ABS
