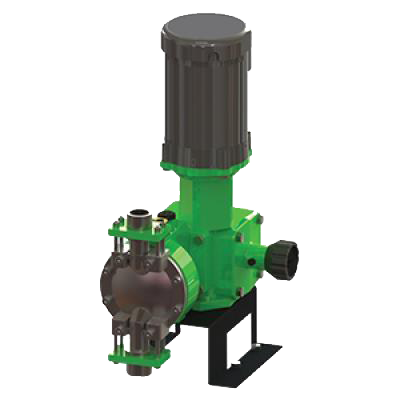

PulsaPro HypoValve:
The HypoValve for the PulsaPro Series, Hydraulically Actuated Diaphragm Pump, is designed to manage off-gassing in dosing applications. The Hypo Valve technology allows pressurized process fluid to cyclically flush liquid and vapors through the pump’s discharge check system, while maintaining high performance and chemical dosing accuracy. This avoids common issues, such as vapor-lock, which lead to reduced capacity and inaccurate chemical dosing while also preventing unnecessary maintenance work.
When pumping effervescent fluids, oxygen will continuously accumulate within the reagent head, significantly affecting its performance and requiring user intervention to purge the gas. The Hypo Valve features a closed loop vapor-handling system and a uniquely sealed solenoid valve that automatically evacuates trapped vapors from the reagent head.
PulsaPro Pumps, configured with the HypoValve, are self-priming for faster and more efficient commissioning. With the addition of this technology, the PulsaPro hydraulically actuated pump efficiently handles off-gassing chemicals such as Sodium Hypochlorite and reduces monitoring requirements and maximizes the uptime for your system.
Add reliability when pumping effervescent fluids:
- Avoid loss of prime caused by trapped gases
- Maintain accuracy while dosing
- Completely integrated design with no external tubing
- Eliminate unnecessary maintenance with automatic purging
The patented HypoValve design is based on proven technology that has been utilized in the field for decades by PulsaPro’s predecessors, Pulsar and Pulsar Shadow.
The HypoValve option is integrated directly into the PulsaPro pump – so it does not require ancillary piping or additional equipment to effectively address Sodium Hypochlorite disinfection applications.
Learn more about the HypoValve’s operation in the video below.
The latest features in the PulsaPro Series include:
- Push to Purge valve
- High Performance Valve
- Hydraulic Bypass Valve
- 4-Bolt Tie Bar
- Check valves
- Diagnostic Window
- Hypo Valve
Pulsafeeder Hydraulically Actuated Diaphragm pumps are designed to simplify operation and maintenance – and they ensure dependability with a 5-year drive train warranty.
