HP Magnetically Driven Centrifugal Pump
Price Pump HP Mag-Drive Pump Models HP75MD and HP100MD have Flows to 65 GPM (246 LPM) and Heads to 165 Feet (50 Meters).
Sizes of the Price Pump HP Mag-Drive Pump Models HP75MD and HP100MD:
- HP75MD – 3/4″ x 3/4″ x 6″
- HP100MD – 1″ x 1″ x 6″
Applications of the Price Pump HP Mag-Drive Pump Models HP75MD and HP100MD:
- Industry-Chemical process, deionized water, wastewater treatment, refrigerants and caustics
- O.E.M.-Washers, filters, chillers, cooling towers, scrubbers, plating equipment
- Agriculture-Acid fertilizers and other agricultural chemicals
Features of the Price Pump HP Mag-Drive Pump Models HP75MD and HP100MD:
- Standard Bushings-Carbon Graphite
- Optional Bushings-Alpha Silicon Carbide (Tungsten carbide coated shaft required)
- Optional Tungsten carbide coated shaft
- Standard NEMA 56C motors
- Magnet Material-Samarium Cobalt
Materials of Construction of the Price Pump HP Mag-Drive Pump Models HP75MD and HP100MD |
|||
| Volute: | 316SS | “O”-Ring: | Viton (STD) Teflon, Buna, EPR, Neoprene, Kalrez, Flouro-Silicon |
| Bracket: | 316SS | Bushings: | Carbon (STD), Silicon Carbide |
| Shaft: | 316SS (STD), Tungsten Carbide Coated |
Thrust Washers: | Ceramic (STD), Silicon Carbide |
| Impeller: | 316SS | Magnet Cup: | 316SS |
| Fasteners: | 316SS | ||
| * Call 1-877-624-5757 for other options | |||
Technical Information of the Price Pump HP Mag-Drive Pump Models HP75MD and HP100MD |
||
| HP75MD | HP100MD | |
| Minimum Recommended Flow – GPM (LPM) | 1/2 (1.9) | 1/2 (1.9) |
| Max. Working Pressure – psi (bar) | 300 (20) | 300 (20) |
| Maximum Solid Size – inch (mm) | 0.03 (0.7) | 0.03 (0.7) |
| Max. Temperature – °F (°C) | 350°F (177°C) | 350°F (177°C) |
| (Solids are not recommended for Mag Drive Pumps) | ||

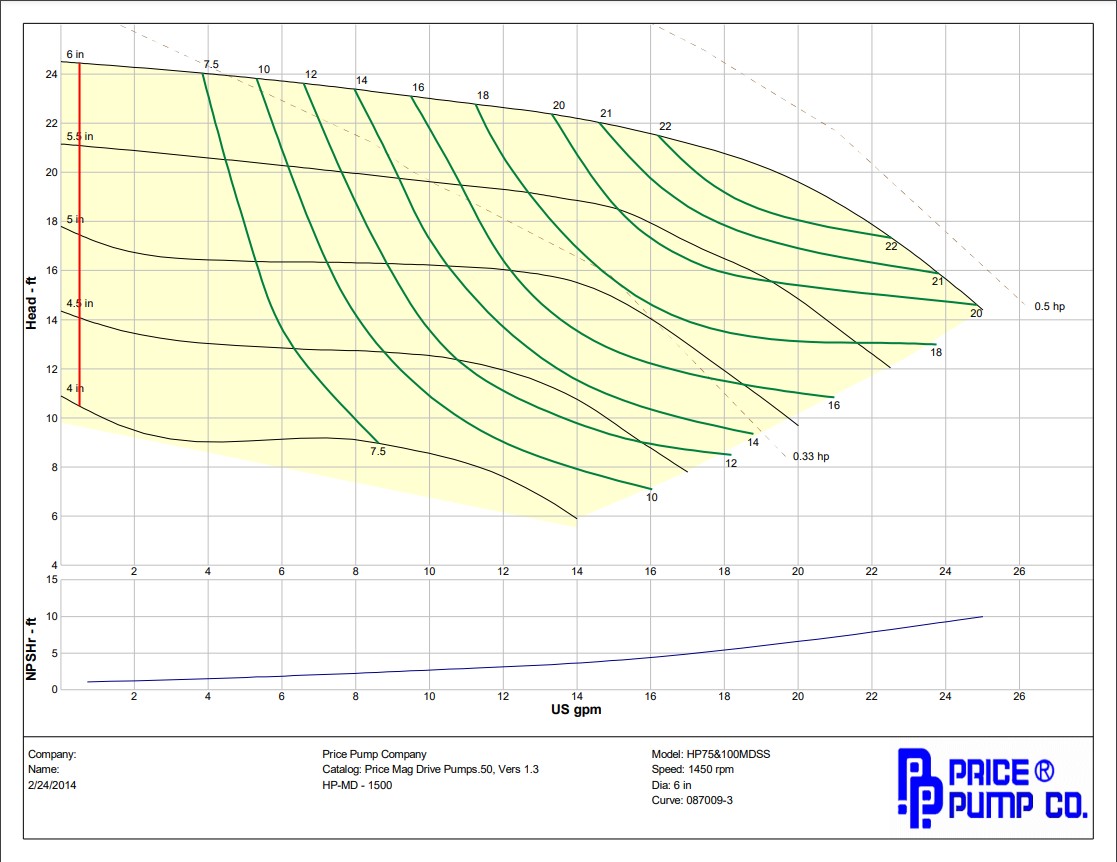

Email us for metric performance curves.
