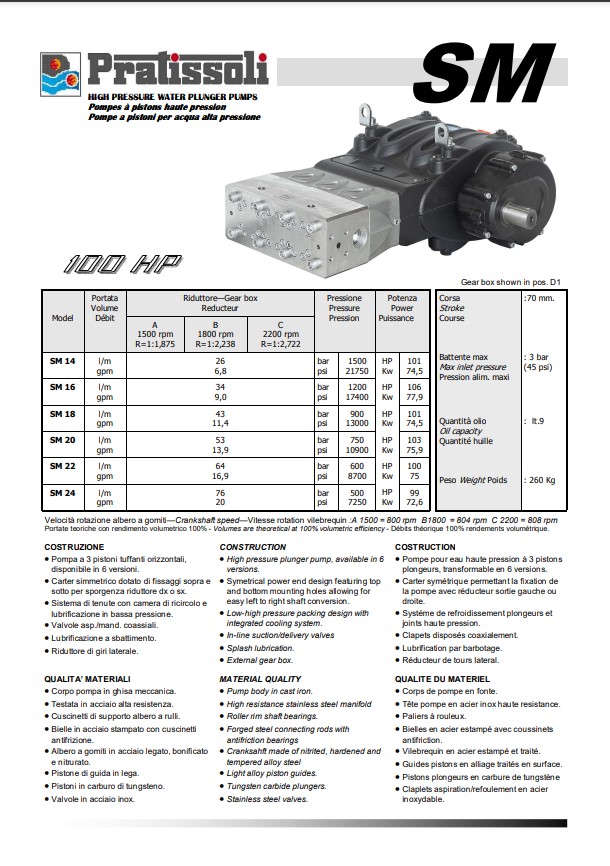

Pratissoli Series SM High Pressure Plunger Pumps
|
Construction High pressure plunger pump, available in 6versions. Symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion. Low-high pressure packing design with integrated cooling system. In-line suction/delivery valves. Splash lubrication. External gear box.
|
Material quality Pump body in cast iron. High resistance stainless steel manifold Roller rim shaft bearings. Forged steel connecting rods with antifriction bearings. Cranksahft made of nitrited, hardened and tempered alloy steel. Light alloy piston guides. Tungsten carbide plungers. Stainless steel valves. |
| Pump Model | Volume | Pressure | Power | rpm | Weight Kg. | Dimensions mm. | |||
| L/min | GPM | bar | psi | kW | HP | ||||
| SM 14 | 26 | 6,9 | 1500 | 21750 | 74,5 | 101 | 1500 | 260 | 878x583x358,8 |
| SM 14 | 26 | 6,9 | 1500 | 21750 | 74,5 | 101 | 1800 | 260 | 878x583x358,8 |
| SM 14 | 26 | 6,9 | 1500 | 21750 | 74,5 | 101 | 2200 | 260 | 878x583x358,8 |
| SM 18 | 43 | 11,4 | 900 | 13050 | 74,5 | 101 | 1500 | 260 | 878x583x358,8 |
| SM 18 | 43 | 11,4 | 900 | 13050 | 74,5 | 101 | 1800 | 260 | 878x583x358,8 |
| SM 18 | 43 | 11,4 | 900 | 13050 | 74,5 | 101 | 2200 | 260 | 878x583x358,8 |
| SM 20 | 53 | 14 | 750 | 10875 | 75,9 | 103 | 1800 | 260 | 878x583x358,8 |
| SM 20 | 53 | 14 | 750 | 10875 | 75,9 | 103 | 2200 | 260 | 878x583x358,8 |
| SM 20 | 53 | 14,4 | 750 | 10875 | 75,5 | 103 | 1500 | 260 | 878x583x358,8 |
| SM 22 | 64 | 16,9 | 600 | 8700 | 73,3 | 100 | 1500 | 260 | 878x583x358,8 |
| SM 22 | 64 | 16,9 | 600 | 8700 | 73,3 | 100 | 1800 | 260 | 878x583x358,8 |
| SM 22 | 64 | 16,9 | 600 | 8700 | 73,3 | 100 | 2200 | 260 | 878x583x358,8 |
| SM 24 | 76 | 20,1 | 500 | 7250 | 72,6 | 99 | 2200 | 260 | 878x583x358,8 |
| SM 24 | 76 | 20,1 | 500 | 7250 | 72,6 | 99 | 1800 | 260 | 878x583x358,8 |
| SM 24 | 76 | 20,1 | 500 | 7250 | 72,6 | 99 | 1500 | 260 | 878x583x358,8 |
