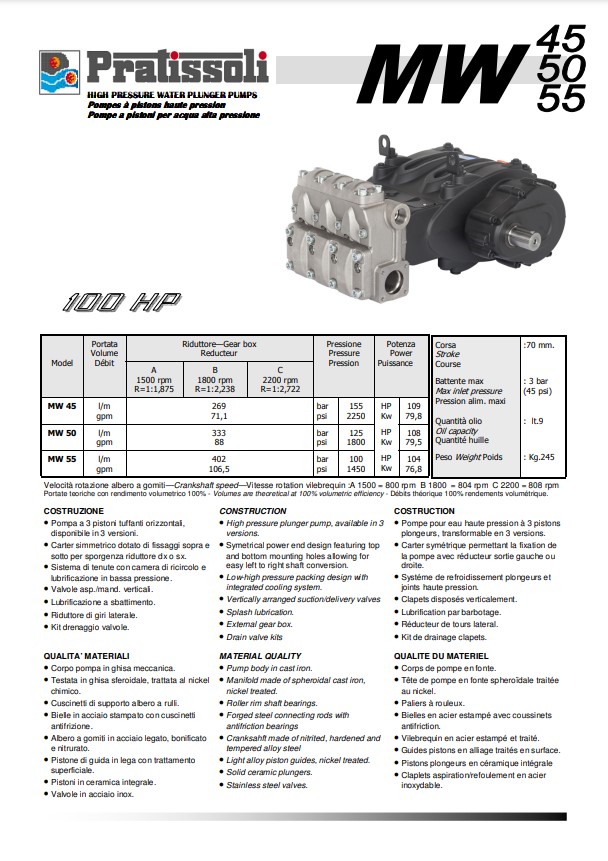

    Pratissoli Series MW High Pressure Plunger Pumps

    Pratissoli Series MW High Pressure Plunger Pumps



    Construction

    High pressure plunger pump, available in 3versions. Symetrical power end design featuring topand bottom mounting holes allowing foreasy left to right shaft conversion. Low-high pressure packing design wi thintegrated cooling system. Vertically arranged suction/delivery valves Splash lubrication. External gear box. Drain valve kits.

    Material quality

    Pump body in cast iron. Manifold made of spheroidal cast iron,nickel treated. Roller rim shaft bearings. Forged steel connecting rods withantifriction bearings Cranksahft made of nitrited, hardened andtempered alloy steel Light alloy piston guides, nickel treated. Solid ceramic plungers. Stainless steel valves.
    Pump Model Volume Pressure Power rpm Weight Kg. Dimensions mm.
    L/min GPM bar psi kW HP
    MW 32 135 35 300 4350 77 105 1500 260 749,5×358,8×583
    MW 32 135 35,7 300 4350 77 105 2200 260 749.5×358.8×583
    MW 32 135 35,7 300 4350 77 105 1800 260 749.5×358.8×583
    MW 36 171 45 240 3480 79 107 1500 260 749,5×358,8×583
    MW 36 171 45,2 240 3480 79 107 1800 260 749.5×358.8×583
    MW 36 171 45,2 240 3480 79 107 2200 260 749.5×358.8×583
    MW 40 211 55 210 3045 76 104 1500 260 749,5×358,8×583
    MW 40 211 55,7 210 3045 76 104 2200 260 749.5×358.8×583
    MW 40 211 55,7 210 3045 76 104 1800 260 749.5×358.8×583
    MW 45 267 70 155 2248 79 107 1500 255 751,5×358,8×583
    MW 45 267 70,5 155 2248 79 107 1800 255 751.5×358.8×583
    MW 45 267 70,5 155 2248 79 107 2200 255 751.5×358.8×583
    MW 50 330 87 125 1813 79 107 1500 255 751,5×358,8×583
    MW 50 330 87,2 125 1813 79 107 1800 255 751.5×358.8×583
    MW 50 330 87,2 125 1813 79 107 2200 255 751.5×358.8×583
    MW 55 399 105 100 1450 76 104 1500 255 751,5×358,8×583
    MW 55 399 105,4 100 1450 76 104 1800 255 751.5×358.8×583
    MW 55 399 105,4 100 1450 76 104 2200 255 751.5×358.8×583
