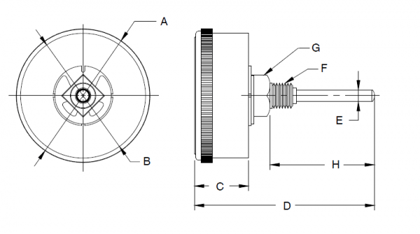

TRIDICATOR 2 1/2 in CENTER BACK DIAGRAM
 |

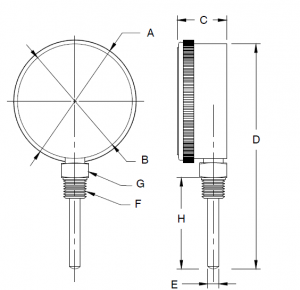

TRIDICATOR 2 1/2 in BOTTOM DIAGRAM
 |

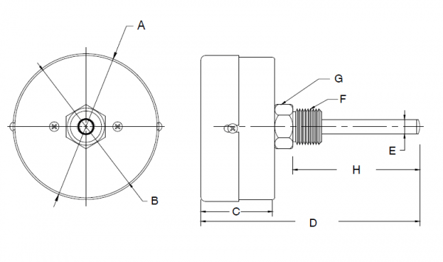

TRIDICATOR 3 in CENTER BACK DIAGRAM
 |

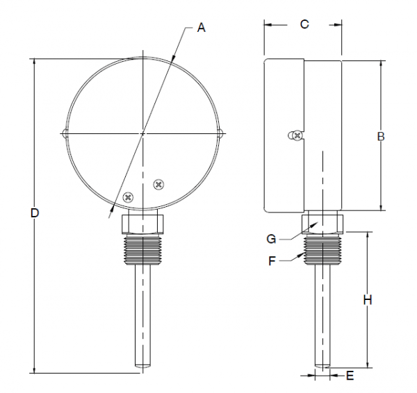

TRIDICATOR 3 in BOTTOM DIAGRAM
 |
Specifications for Tridicator:
| Case | Steel, painted black |
|---|---|
| Dial | White aluminum, psi and °F in black, kPa and °C in blue |
| Lens and cover | 2 ½ in (63 mm) acrylic threaded lens cover 3 in (80 mm) polycarbonate lens and chrome plated ring |
| Pointer | Anodized black aluminum |
| Movement | Brass (pressure) bimetal coil (temperature) |
| Stem | Brass |
| Connection | 2 ½ in (63 mm) ¼ in nptm, 3 in (80 mm) ½ in nptm |
| Recommended pressure and temperature | Maximum 67 % of full scale value |
| Ambient temperature | 25 to 125°F / -5 to 50°C |
| Accuracy | Pressure and Temperature: Grade B ± 2% |
To order, use the code in the corresponding column
| Diameter Ø | Range | Connection | Product code |
|---|---|---|---|
| 2 ½ in (63 mm) | 0 to 75 psi/kPa and 30 to 240˚F/C | ¼ in nptm center back mount | TRI-01 |
| 2 ½ in (63 mm) | 0 to 75 psi/kPa and 30 to 240˚F/C | ¼ in nptm bottom mount | TRI-02 |
| 3 in (80 mm) | 0 to 75 psi/kPa and 30 to 240˚F/C | ½ in nptm bottom mount | TRI-03 |
| 3 in (80 mm) | 0 to 75 psi/kPa and 30 to 240˚F/C | ½ in nptm center back mount | TRI-04 |
| 3 in (80 mm) | 0 to 100 psi/kPa and 30 to 240˚F/C | ½ in nptm bottom mount | TRI-05 |
| 3 in (80 mm) | 0 to 100 psi/kPa and 30 to 240˚F/C | ½ in nptm center back mount | TRI-06 |
| 3 in (80 mm) | 0 to 200 psi/kPa and 30 to 240˚F/C | ½ in nptm bottom mount | TRI-07 |
| 3 in (80 mm) | 0 to 200 psi/kPa and 30 to 240˚F/C | ½ in nptm center back mount | TRI-08 |
| 3 in (80 mm) | 0 to 100 psi and 0 to 80˚F | ½ in nptm bottom mount | TRI-10 |
| 3 in (80 mm) | 0 to 100 psi and 0 to 80˚F | ½ in nptm center back mount | TRI-11 |
