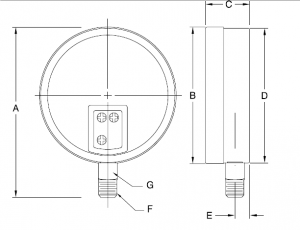

| 400A16 | Diagram (Bottom) |
 |
 |

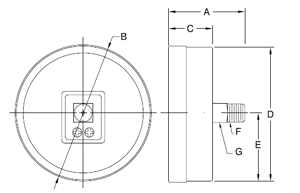

| 401A10 | Diagram (Center Back) |
Dimensions As per Diagram:
| Ø | Connection | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| 1.5 in (40 mm) | bottom | 2.22 in (56.4 mm) | 1.66 in (42.2 mm) | 0.98 in (24.9 mm) | 1.60 in (40.6 mm) | 0.32 in (8.1 mm) | ⅛ in nptm | 7/16 flat (11 mm) |
| 1.5 in (40 mm) | center back | 1.58 in (40.1 mm) | 1.66 in (42.2 mm) | 0.98 in (24.9 mm) | 1.60 in (40.6 mm) | 0.80 in (20.3 mm) | ⅛ in nptm | 7/16 flat (11 mm) |
| 2 in (50 mm) | bottom | 2.82 in (71.63 mm) | 2.07 in (52.6 mm) | 1.11 in (28.2 mm) | 2.01 in (50.9 mm) | 0.39 in (9.91 mm) | ⅛ in nptm
¼ in nptm |
7/16 flat (11 mm)
9/16 flat (14 mm) |
| 2 in (50 mm) | center back | 1.83 in (46.5 mm) | 2.07 in (52.6 mm) | 1.11 in (28.2 mm) | 2.01 in (50.9 mm) | 1 in (25.5 mm) | ⅛ in nptm
¼ in nptm |
7/16 flat (11 mm)
7/16 flat (11 mm) |
| 2.5 in (63 mm) | bottom | 3.26 in (82.8 mm) | 2.5 in (63.5 mm) | 1.11 in (28.2 mm) | 2.44 in (61.9 mm) | 0.39 in (9.91 mm) | ¼ in nptm | 9/16 flat (14 mm) |
| 2.5 in (63 mm) | center back | 1.87 in (47.5 mm) | 2.5 in (63.5 mm) | 1.11 in (28.2 mm) | 2.44 in (61.9 mm) | 1.2 in (32 mm) | ¼ in nptm | 9/16 flat (14 mm) |
| 4 in (100 mm) | bottom | 4.92 in (125 mm) | 3.95 in (100 mm) | 1.28 in (32.5 mm) | 3.88 in (98.5 mm) | 0.43 in (10.9 mm) | ¼ in nptm | 9/16 flat (14 mm) |
| 4 in (100 mm) | center back | 2.22 in (56.4 mm) | 3.90 in (99 mm) | 1.28 in (32.5 mm) | 3.88 in (98.5 mm) | 1.5 in (38.1 mm) | ¼ in nptm | 9/16 flat (14 mm) |
