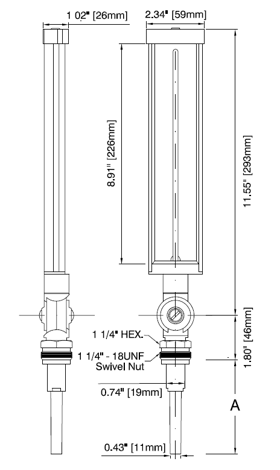

Model ITA900 -3501
Specifications for Multi Angle Industrial Thermometer 9 in:
| Case | 9 in (228 mm) cast aluminum, black epoxy finish |
|---|---|
| Lens | Reinforced glass |
| Stem | Aluminum, adjustable angle with 360° rotation, 3 ½ in (90 mm) or 6 in (150 mm) in length |
| Connection | 1 ¼ in – 18 UNF, ¾ in nptm swivel nut, fits on well |
| Scale | White aluminum, dual scale °F and °C, black markings |
| Filling type | Organic blue, (550°F) maximum |
| Well | Available in brass, 304 or 316 stainless steel, see page T5 |
| Accuracy | ASME B40.200(B40.8), Grade A ± 1 % CAN/CGSB – 14.4 |
To order, use the code in the corresponding column
| Range | Stem 3 1/2 in (90 mm) | Stem 6 in (150 mm) |
|---|---|---|
| -40 to 110˚F / -40 to 40˚C | ITA900-3501 | ITA900-6001 |
| 0 to 160˚F / -15 to 70˚C | ITA900-3502 | ITA900-6002 |
| 30 to 240˚F / 0 to 115˚C | ITA900-3503 | ITA900-6003 |
| 30 to 300˚F / 0 to 150˚C | ITA900-3504 | ITA900-6004 |
| 0 to 100˚F / -15 to 38˚C | ITA900-3505 | |
| 50 to 400˚F / 10 to 200˚C | ITA900-3506 | |
| 50 to 550˚F / 10 to 290˚C | ITA900-3507 |
