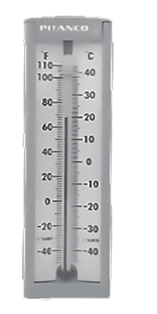

Pitanco Precision Industrial Thermometer 5 inch
 |
 |
IT500A |
IT500S
|

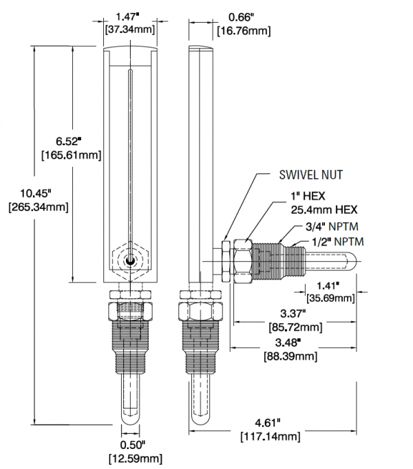

Thermometer IT500A and IT500S Diagram:
Specifications for Industrial Thermometer 5 In :
| Case | 5 in (125 mm) impact resistant light gray plastic |
|---|---|
| Lens | Standard glass |
| Stem | Brass, straight or 90° angle connection |
| Swivel nut | Brass |
| Scale | White aluminum, dual scale (°F and °C) with black markings |
| Well | Brass, ½ in and ¾ in nptm standard, #WIT500-07 included |
| Filling type | Organic blue |
| Ambient temperature | -40 to 120°F / -40 to 49°C |
| Operating temperature | Maximum 75 % of full scale value |
| Accuracy | ASME B40.200(B40.8), Grade B ± 2 % CAN/CGSB – 14.4 |
To Order, Use The Code In The Corresponding Column
| Range | Product Code / Straight Stem | Product Code / 90˚ Angle Stem |
|---|---|---|
| -40 to 110˚F / -40 to 40˚C | IT500-01S | IT500-01A |
| 20 to 180˚F / -5 to 80˚C | IT500-02S | IT500-02A |
| 30 to 240˚F / 0 to 115˚C | IT500-03S | IT500-03A |
| 30 to 300˚F / 0 to 150˚C | IT500-04S | IT500-04A |
| 50 to 400˚F / 10 to 200˚C | IT500-04S | IT500-05A |
