Model IT800A |

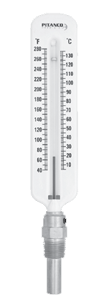

Model lT800S |
 |
 |
 |
|

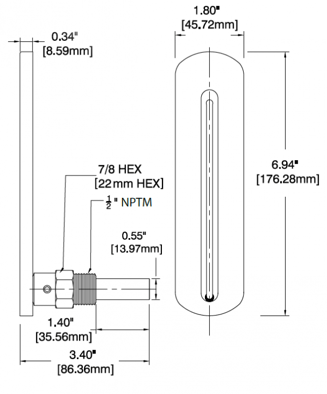

Hot Water Industrial Thermometer IT800A Diagram
|
 |
|

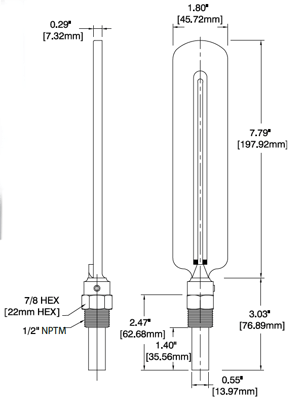

Hot Water Industrial Thermometer It800S Diagram
|
Specifications for Industrial Hot Water Thermometer 8 in:
| Case | 8 in (200 mm) white steel finish, graduations °F / °C in black |
|---|---|
| Stem | Separable brass socket ½ in nptm, angle type (IT800A) or straight type (IT800S) |
| Tube | Glass |
| Liquid filling | Organic red |
| Accuracy | ASME B40.200(B40.8), Grade A ± 1 % CAN/CGSB – 14.4 |
To Order, Use The Code In The Corresponding Column
| Range | Connection | Product code |
|---|---|---|
| 40 to 280˚F / 5 to 135˚C | 90° angle type ½ in nptm | IT800A |
| 40 to 280˚F / 5 to 135˚C | Straight type ½ in nptm | IT800S |
