    Pitanco Precision Glycerin Filled Industrial Pressure Gauge – Stainless Steel Case, Brass Wetted Parts

    Model LFB – Stainless Steel Case | Brass Wetted Parts

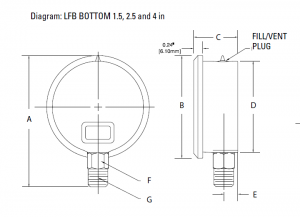

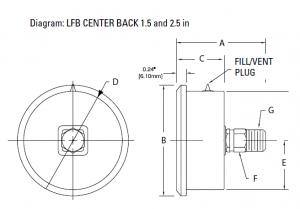

    Glycerin-Filled-Industrial-Pressure-Gauge-250-LFB-Bottom-Diagram-300x217 Glycerin-Filled-Industrial-Pressure-Gauge-LFB-Center-Back-300x209
    250LFB10 Diagram
    251 LFB 19 Diagram



    Specifications  of Glycerin Filled Pressure Gauge:

    Case 304 Stainless Steel
    Dial White aluminum with psi graduations in black and kPa graduations in blue
    Ring 304 stainless steel, hermetically sealed or bayonet style (model BAY)
    Lens Polycarbonate
    Pointer Anodized black aluminum
    Connection 1 ½ in (40 mm) 1/8 in nptm bottom or center back, 2 ½ in (63 mm) ¼ in nptm bottom or center back,
    4 in (100 mm) ¼ in nptm bottom or lower back
    Wetted parts Brass
    Bourdon tube Phosphor bronze
    Maximum process
    and ambient temperatures    		 -40 to 150°F / -40 to 65°C dry,
    32 to 160°F / 0 to 70°C glycerin filled
    Operating pressure Maximum 75 % of full scale value
    Overpressure limit 25 % over full scale value
    Accuracy ASME B40.100(B40.1), Grade B ± 2 %
    Applications

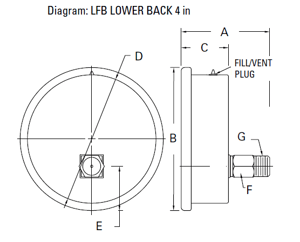

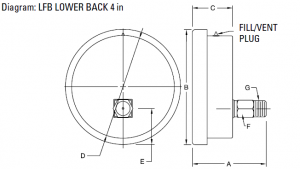

    Glycerin-Filled-Industrial-Pressure-Gauge-LFB-Lower-Back-4-IN Glyceri-Filled-INdustril-Pressure-Gauge-LFB-Lower-BBack-4-in-300x169
    401 LFB 15
    401LFB19 – BAY

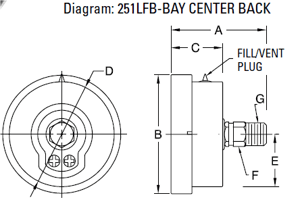

    Glycerin-Filled-Industrial-Pressure-Gauge-250-LFB-Bottom-Diagram-1-300x217 Glycerin-Filled-INdustrial-Pressure-Gauge-251-LFb-Bay-Center-Back
    250 LFB 14 BAY
    251 LFB BAY



    Dimensions as per Diagram

    Ø Connection A B C D E F G
    1.5 in (40 mm) hermetically sealed bottom 2.43 in (61.7 mm) 1.84 in (46.7 mm) 1 in (25.4 mm) 1.6 in (40.6 mm) 0.30 in (7.6 mm) 7/16 hex. (11 mm) ⅛ in nptm
      center back 1.75 in (44.5 mm) 1.84 in (46.7 mm) 1 in (25.4 mm) 1.6 in (40.6 mm) 0.8 in (20.3 mm) 7/16 hex. (11 mm) ⅛ in nptm
    2.5 in (63 mm) hermetically sealed bottom 3.45 in (87.6 mm)
      “ “ “ “ “ “ “ 1/4 bspp
      center back 2.16 in (54.9 mm) 2.7 in (68.5 mm) 1.16 in (29.4 mm) 2.4 in (60.9 mm) 1.2 in (31 mm) 9/16 hex. (14 mm) ¼ in nptm
    2.5 in (63 mm) bayonet bottom 3.45 in (87.6 mm) 2.74 in (69 mm) 1.18 in (30 mm) 2.4 in (60.9 mm) 0.37 in (9.4 mm) 9/16 hex. (14 mm) ¼ in nptm
      center back 2.12 in (54.9 mm) 2.74 in (69 mm) 1.18 in (30 mm) 2.4 in (60.9 mm) 1.22 in (31 mm) 9/16 hex. (14 mm) ¼ in nptm
    4 in (100 mm) hermetically sealed bottom 5.26 in (133.7 mm) 4.3 in (109.2 mm) 1.42 in (36 mm) 3.86 in (98 mm) 0.50 in (12.7 mm) 11/16 hex. (17 mm) ¼ in nptm
      “ “ “ “ “ “ “ ⅜ bspp
      lower back 2.66 in (67.5 mm) 4.3 in (109.2 mm) 1.42 in (36 mm) 3.86 in (98 mm) 1.33 in (33.8 mm) 11/16 hex. (17 mm) ¼ in nptm
    4 in (100 mm) bayonet bottom 5.31 in (109.2 mm) 4.3 in (109.2 mm) 1.53 in (38.9 mm) 3.90 in (99 mm) 0.50 in (12.7 mm) 11/16 hex. (17 mm) ¼ in nptm
      lower back 2.66 in (67.5 mm) 4.3 in (109.2 mm) 1.53 in (38.9 mm) 3.90 in (99 mm) 1.33 in (33.8 mm) 11/16 hex. (17 mm) ¼ in nptm

    To Order,  download the order tables in the links below, and use the code in corresponding column :

    Order Code Table for Pressure Gauge LFB – Offered in 1/2 in nptm connection only

    Order Code Table for Pressure Gauge LFB 2
