    Pitanco Precision Contractor Gauge

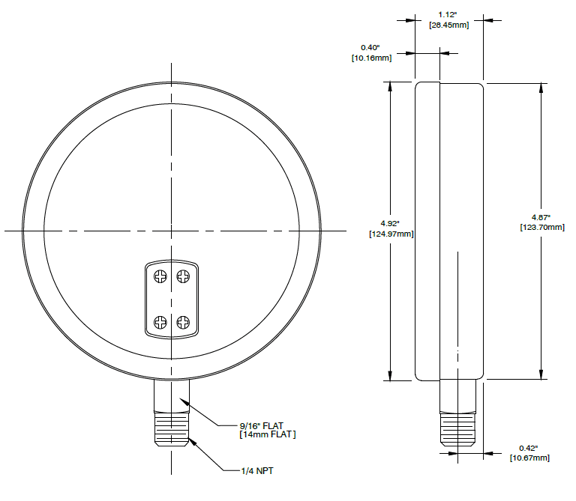

    Contractor-Gauge-Diagram

    Specifications for Pitanco Contractor Gauge :

    Case 4 ½ in (115 mm), 304 stainless steel
    Dial White aluminum, psi graduations in black, kPa graduations in blue
    Ring 304 stainless steel
    Lens Polycarbonate
    Pointer Anodized black aluminum, re-calibrator screw
    Connection ¼ in nptm bottom mount
    Wetted parts Brass
    Bourdon tube Phosphor bronze
    Operating pressure Maximum 75 % of full scale value
    Maximum process and ambient temperature -40 to 150°F / -40 to 65°C
    Accuracy ASME B40.100(B40.1), Grade 1A ± 1 %

    To Order Click On The Order Code Table Link Below and Use The Code IN The Corresponding Column:

    Contractor Gauge Order Code Table
