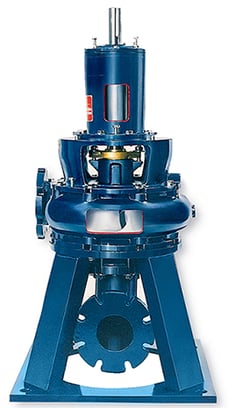

H2O Works™ The Forceline® NCS Series
These durable, H2O Works™ pumps are specially designed to pump sludge, raw unscreened sewage, miscellaneous liquids and contaminated trashy fluids efficiently, without clogging. A patented, self-cleaning ring prevents clogging. Easily installed and highly reliable, the design of these field-tuned, refined, dry pit service pumps incorporates extensive input from engineering firms, maintenance personnel, plant and equipment operators and mechanical/hydraulic experts. The Forceline® is well known for its high efficiencies, rugged construction and serviceability in wastewater and industrial applications alike.
Forceline NCS pumps are available in three basic configurations, from 3-in. to 12-in. discharge, vertically mounted and directly coupled through a flexible coupling, vertically mounted and remotely coupled through an extended drive shaft and horizontally mounted and directly coupled through a flexible coupling Both horizontal and vertical models are offered in standard or alloy construction. They are also available with a sealing arrangement that requires no flush water. Capacities range from 150 gpm to 12,000 gpm, with heads in excess of 250 ft. They are hydrostatically tested to 1-1/2 times shut-off head before shipment.
Forceline NCS pumps are available in three basic configurations, from 3-in. to 12-in. discharge, vertically mounted and directly coupled through a flexible coupling, vertically mounted and remotely coupled through an extended drive shaft and horizontally mounted and directly coupled through a flexible coupling Both horizontal and vertical models are offered in standard or alloy construction. They are also available with a sealing arrangement that requires no flush water. Capacities range from 150 gpm to 12,000 gpm, with heads in excess of 250 ft. They are hydrostatically tested to 1-1/2 times shut-off head before shipment.
Waste Away!
Patterson technology helps transform even wastewater into a valuable resource. Designed to move sewage, sludge and dirty water, these pumps do not clog and serve reliably and efficiently year after year in wastewater applications around the globe.
________________________________________________________________________________________________________________________

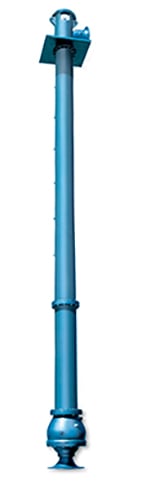

H2O Works™ Multi-Purpose Vertical Turbine Pumps
Today, Patterson’s vertical turbine technology is the product of years of vertical pump experience. The result is a refined design that produces exceptional hydraulic performance, with low vibration and noise levels. And pumping sections can be staged as necessary to meet desired pressure requirements. Vertical turbine units require only minimal floor space and operate in low NPSHA applications. The above-grade discharge, motor and controller allow easy, safe maintenance. Specifically designed to handle stringy solids, H2O Works™ Multi-Purpose Vertical Turbine® pumps are widely used in municipal/industrial solids handling, water treatment, flood control and water supply applications. Bowl sizes from 12 in. to 40 in. deliver capacities from 1,500 gpm to 20,000 gpm and above. Standard units have cast iron discharge heads, fabricated steel column, stainless steel head and bowl shafts, alloy steel line shaft and cast iron bronze fitted bowls. Open line shaft construction is standard.
Waste Away!
Patterson technology helps transform even wastewater into a valuable resource. Designed to move sewage, sludge and dirty water, these pumps do not clog and serve reliably and efficiently year after year in wastewater applications around the globe.
