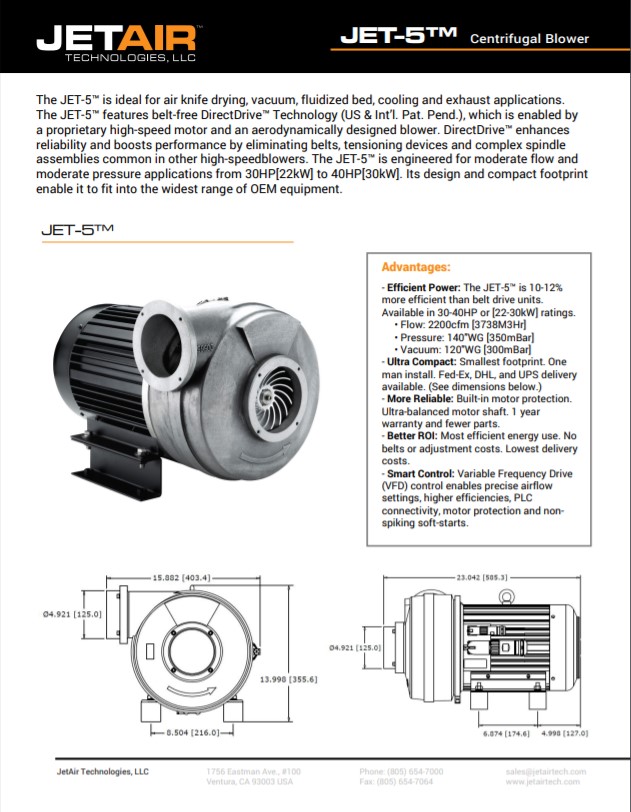

JET-5 Centrifugal Blower – Single Stage
- Flow: 2200 cfm [3738M 3Hr]
- Pressure: 140″ WG [350m Bar]
- Vacuum: 120″ WG [300m Bar]
The JET-5™ is ideal for air knife drying, vacuum, fluidized bed, cooling and exhaust applications. The JET-5™ is the most compact centrifugal blower available and features belt-free DirectDrive™ Technology (US & Int’l. Pat. Pend.), which is enabled by a proprietary high-speed motor and an aerodynamically designed blower. DirectDrive™ enhances reliability and boosts performance by eliminating belts, tensioning devices and complex spindle assemblies common in other high-speed blowers. The JET-5™ is engineered for moderate flow and moderate pressure applications from 30HP [22 kW] to 40HP [30 kW]. Its design and compact footprint enable it to fit into the widest range of OEM equipment.
Advantages of the JET-5 Centrifugal Blower:
Efficient Power:
- The JET-5™ is 10 – 12% More Efficient than Belt Drive Units
- Available in 30-40 HP [22-30 kW] Ratings.
- Flow: 2200 cfm [3738M 3Hr]
- Pressure: 140″ WG [350m Bar]
- Vacuum: 120″ WG [300m Bar]
Ultra Compact:
- Smallest Footprint
- One-Man Install
- Fed-Ex, DHL, and UPS Delivery Available
Dimensions:
- Width: 15.89″ [403mm]
- Length: 23.04″ [585mm]
- Height: 14.00″ [356mm]
More Reliable:
- Built-in Motor Protection
- Ultra-Balanced Motor Shaft
- 1 year Warranty and Fewer Parts
Better ROI:
- Most Efficient Energy Use
- No Belts or Adjustment Costs
- Lowest Delivery Costs
Smart Control:
- Variable Frequency Drive (VFD) Control Enables
- Precise Airflow Settings
- Higher Efficiencies
- PLC Connectivity
- Motor Protection
- Non-Spiking Soft-Starts
Technical Specifications of the JET-5 Centrifugal Blower:
Description:
- DirectDrive™ Technology
- Single Stage Centrifugal Compressor
- Oil-Less, Spindle Free Design
Drive System:
- DirectDrive™ Technology with Variable Frequency Drive Control
- Integrated Motor Protection
- Air Cooled Rated: 105ºF [40ºC]
Impeller
- 5 Axis C355 Aluminium
Aero-Blower:
- A356-T6 Aluminum with Integrated Lifting Eye
High-Speed Motor:
- TEFC
- IP54
- External Junction Box
- 30-40 HP [22-30 kW]
- 3-Phase, 190-220, 390-480 and 600VAC,
- 50/60Hz
- Thermister
- 105ºF [40ºC] Ambient.
Weight:
- 180lbs [82kg]
Connections:
- Inlet 5ӯ [126mm]
- Outlet 4ӯ [102mm]
- 360º Rotation
Warranty:
- 1 Year.
Applications include:
Beverage
- Dry for Labeling, Coding, Inspection & Secondary Packaging
- Single File or Mass Flow
- Clean Containers using Ionized Air before Filling
Food
- Dry for Labeling, Coding & Secondary Packaging
- Smooth & Cure Coatings
- Remove Loose Product
- Remove Excess Water
- Dry Conveyors
- Move Product
Pharmaceuticals
- Dry Pouches – Gusseted, Pillow, etc.
- Air Rinse and/or Dry Containers with HEPA-Filtered Air
- Remove Debris
- Dry IV Bags
Industrial
- Machine Tool Coolant Removal
- Dry Sheets, Crates, Wire, etc.
- Dry Large Applications
- Debris, Bead Blast & Casting Sand Removal
- Dry before Coding
- Cooling
Powder
- Dry Powder Blenders of any Size
- Remove Statically Charged Powder from Container Interiors & Exteriors
Automotive
- Battery Process Drying, Pre-Paint Ionized Air Rinse, Parts Blow-Off
Textiles
- Vacuum Cutting Tables
Customized Solutions
- Engineered-to-Order Systems for any of your drying and air rinsing applications.
JetAir Technologies’ technical staff designs systems that are easy to use, install, and integrate into existing lines. Their drying and blow-off systems are equipped with best-in-class safety features found only in JetAir Systems. Drying and Blow-Off solutions are available in multiple configurations, performances and control schemes.
