Hydra-Cell P700 Series Pumps Electronic Precision Metering
Versatile, Reliable Pumps for a Wide Range of Applications
- Designed to handle a wide range of fluids from clear water to thick slurries
- Electronic flow control increases accuracy and reliability
- Multiple diaphragm design provides linear, virtually pulse-less flow
- Smaller footprint saves valuable space
- One pump covers a wide range of flows and pressures - reducing inventory requirements with fast, simple field conversion
- Duplexing option doubles capacity and equipment savings
- Hydraulically-actuated, balanced diaphragms provide superior performance across entire pressure range
- Rugged construction with a variety of affordable choices for liquid end, diaphragm and check valve materials
| Maximum Flow Rate: | 1394 gph (4396 lph) |
| Maximum Pressure: | 1200 psi (83 bar) for Metallic Pump Heads |

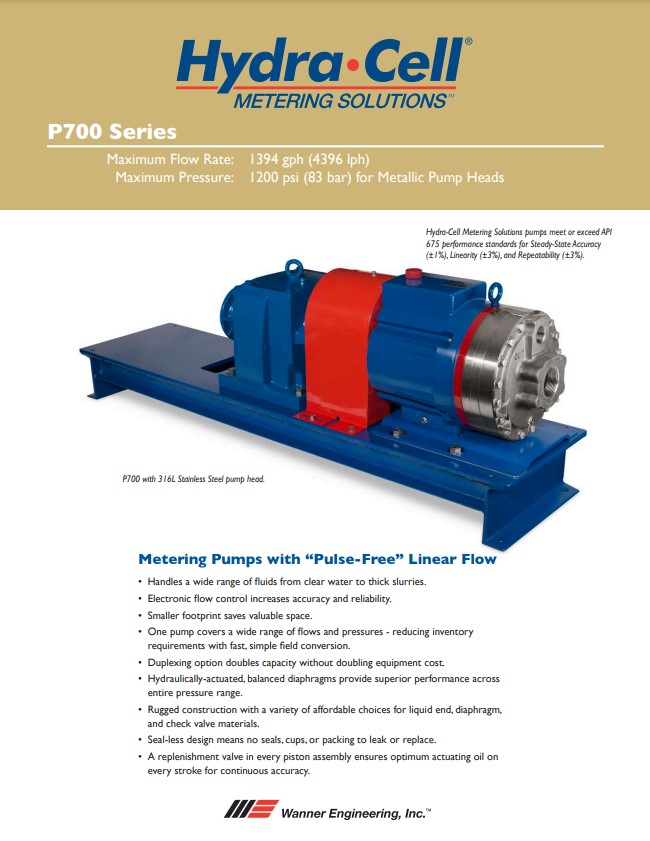

Hydra-Cell P700 Series Pump Specifications
________________________________________________________________________________________________________________________
| Diaphragms per Liquid End | 5 with Advanced Diaphragm |
| Position Control (ADPC) | |
| Flow Control | Electronic variable speed drive |
| Maximum Discharge Pressure | |
| Metallic Heads: | 1200 psi (83 bar) |
| Maximum Inlet Pressure | 250 psi (17 bar) |
| Maximum Operating Temperature | |
| Metallic Heads: | 250 ̊F (121 ̊C)* |
| Maximum Solids Size | 800 microns |
| Inlet Port | 2-1/2 inch NPT/BSPT or |
| 3 inch SAE J518 flange | |
| Discharge Port | 1-1/4 inch NPT/BSPT or |
| 1-1/4 inch SAE J518 flange | |
| Shaft Rotation | Bi-directional |
| Oil Capacity | 7.75 US quarts (7.4 liters) |
| Weight (less motor) | |
| Metallic Heads: | 638 to 685 lbs (289 to 311 kg) |
| Dimensions (less motor)** | |
| Metallic Heads: | 11.53” W x 39.51” D x 15.11” H |
| (292.9 mm W x 1003 mm D x 383.8 mm H) | |
| * Consult factory for correct metallic head component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C). | |
| ** For NEMA 143/145TC motor frames only | |
________________________________________________________________________________________________________________________
Hydra-Cell Pumps for Mining, Tunneling, Quarrying & Dust Suppression
Applications by Mining Market
- Borehole Stabilization (Injecting bentonite and other substances)
- Liquid Explosives (Charging liquid explosives into blast holes and rigs)
- Drill Head Cooling (Cooling the picks and coal cutters and tunneling machines while reducing dust generation)
- Hazardous Chemical Pumping (Metering hazardous solutions in metal extraction)
- Conveyor Cleaning (24/7 continuous duty in high-pressure jet cleaning)
- Gland Seal Flushing (Protecting large slurry pumps from seal damage)
- Gas Extraction (Powering a Venturi jet pump to lift drillhole water and release gas to the surface)
