Hydra-Cell D35 Series (US) / G35 Series (Metric) Diaphragm Pump Features
Versatile, Reliable Pumps for a Wide Range of Applications
- Pumps the full spectrum of low-to-high viscosity fluids.
- Features a seal-less design and horizontal disk check valves that enable the pump to handle abrasives and particulates that might damage or destroy other types of pumps.
- Simple, compact design reduces initial investment and lowers maintenance costs.
- Operational efficiencies reduce energy costs.
- Able to run dry without damage (or additional maintenance) to the pump in case
- of accident or operator error.
- Tolerates non-ideal operating conditions.
- Minimizes maintenance and downtime because there are no seals, packing or cups to leak or replace.
| Maximum Flow Rate: | 36.5 gpm (138 l/min) |
| Maximum Pressure: | 1500 psi (103 bar) for Metallic Pump Heads |
Hydra-Cell D35 Series (US) / G35 Series (Metric) Pump Specifications
Hydra-Cell D35 Series (US)
________________________________________________________________________________________________________________________
| Model | Flow Capacities | rpm | gpm | l/min |
|---|---|---|---|---|
| D35-X | @ 1200 psi (83 bar) | 1050 | 36.5 | 138 |
| D35-E | @ 1200 psi (83 bar) | 1150 | 34.0 | 129 |
| Model | Delivery | gal/rev | liters/rev |
|---|---|---|---|
| D35-X | @ 1200 psi (83 bar) | 0.0347 | 0.1314 |
| D35-E | @ 1200 psi (83 bar) | 0.0296 | 0.1120 |
| Model | Delivery | gal/rev | liters/rev |
|---|---|---|---|
| D35-X | @ 1500 psi (103 bar) | 0.0330 | 0.1250 |
| Maximum Discharge Pressure | |
| Metallic Heads: | 1200 psi (83 bar) @ 1150 rpm max. |
| 1500 psi (103 bar) @ 700 rpm max. - Consult factory if operating above 1200 psi (83 bar). | |
| Maximum Inlet Pressure | 250 psi (17 bar) with 1500 psi (103 bar) |
| maximum discharge pressure | |
| 500 psi (34 bar) with 1200 psi (83 bar) | |
| maximum discharge pressure | |
| Maximum Operating Temperature | |
| Metallic Heads: | 250 ̊F (121 ̊C) - Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C). |
| Maximum Solids Size | 800 microns |
| Inlet Port | 2-1/2 inch NPT |
| 150lb or 600lb ANSI RF flange | |
| 3 inch SAE flange | |
| Discharge Port | 1-1/4 inch NPT |
| 600lb or 1500lb ANSI RF flange | |
| 1-1/4 inch SAE flange | |
| Shaft Diameter | 2 inch (50.8 mm) |
| Shaft Rotation | Reverse (bi-directional) |
| Bearings | Tapered roller bearings |
| Oil Capacity | 7.75 US quarts (7.3 liters) |
| Weight | |
| Metallic Heads: | 257 lbs. (116.6 kg) |
Hydra-Cell G35 Series (Metric)
________________________________________________________________________________________________________________________
| Model | Flow Capacities | rpm | gpm | l/min |
|---|---|---|---|---|
| G35-X | @ 83 bar (1200 psi) 6-pole Motor @ 50 Hz | 960 | 33.50 | 127.00 |
| G35-E | @ 83 bar (1200 psi) 6-pole Motor @ 50 Hz | 960 | 29.00 | 110.00 |
| Model | Flow Capacities | rpm | gpm | l/min |
|---|---|---|---|---|
| G35-X | @ 83 bar (1200 psi) 8-pole Motor @ 50 Hz | 730 | 25.50 | 96.60 |
| G35-E | @ 83 bar (1200 psi) 8-pole Motor @ 50 Hz | 730 | 22.10 | 83.60 |
| Model | Delivery | gal/rev | liters/rev |
|---|---|---|---|
| G35-X | @ 83 bar (1200 psi) | 0.0347 | 0.1314 |
| G35-E | @ 83 bar (1200 psi) | 0.0296 | 0.1120 |
| Model | Delivery | gal/rev | liters/rev |
|---|---|---|---|
| G35-X | @ 103 bar (1500 psi) | 0.0330 | 0.1250 |
| Maximum Discharge Pressure | |
| Metallic Heads: | 83 bar (1200 psi) @ 1150 rpm max. |
| 103 bar (1500 psi) @ 700 rpm max. - Consult factory if operating above 83 bar (1200 psi). | |
| Maximum Inlet Pressure | 17 bar (250 psi) with 103 bar (1500 psi) |
| maximum discharge pressure | |
| 34 bar (500 psi) with 83 bar (1200 psi) | |
| maximum discharge pressure | |
| Maximum Operating Temperature | |
| Metallic Heads: | 121 ̊C (250 ̊F) - Consult factory for correct component selection for temperatures from 71 ̊C (160 ̊F) to 121 ̊C (250 ̊F). |
| Maximum Solids Size | 800 microns |
| Inlet Port | 2-1/2 inch BSPT |
| 2-1/2 inch NPT | |
| 150lb or 600lb ANSI RF flange | |
| 3 inch SAE flange | |
| Discharge Port | 1-1/4 inch BSPT |
| 1-1/4 inch NPT | |
| 600lb or 1500lb ANSI RF flange | |
| 1-1/4 inch SAE flange | |
| Shaft Diameter | 50.8 mm (2 inch) |
| Shaft Rotation | Reverse (bi-directional) |
| Bearings | Tapered roller bearings |
| Oil Capacity | 7.3 liters (7.75 US quarts) |
| Weight | |
| Metallic Heads: | 116.6 kg (257 lbs.) |
________________________________________________________________________________________________________________________
Hydra-Cell Pumps for Mining, Tunneling, Quarrying & Dust Suppression
Applications by Mining Market
- Borehole Stabilization (Injecting bentonite and other substances)
- Liquid Explosives (Charging liquid explosives into blast holes and rigs)
- Drill Head Cooling (Cooling the picks and coal cutters and tunneling machines while reducing dust generation)
- Hazardous Chemical Pumping (Metering hazardous solutions in metal extraction)
- Conveyor Cleaning (24/7 continuous duty in high-pressure jet cleaning)
- Gland Seal Flushing (Protecting large slurry pumps from seal damage)
- Gas Extraction (Powering a Venturi jet pump to lift drillhole water and release gas to the surface)
Have a Fluid Handling Problem? We can help you find a Pumping Solution.
John Brooks Company caters to diverse industries, offering suitable pump solutions for nearly all fluid handling needs - including yours! Our success hinges on fostering a collaborative partnership with you, where we help you find a tailored solution to enhance your systems, boost productivity, and minimize operational expenses
Consult with a John Brooks Company Pump expert today to help you determine the most suitable pump type for your application needs.
-G20%20Series%20(Metric)/installation-guidelines.jpg)

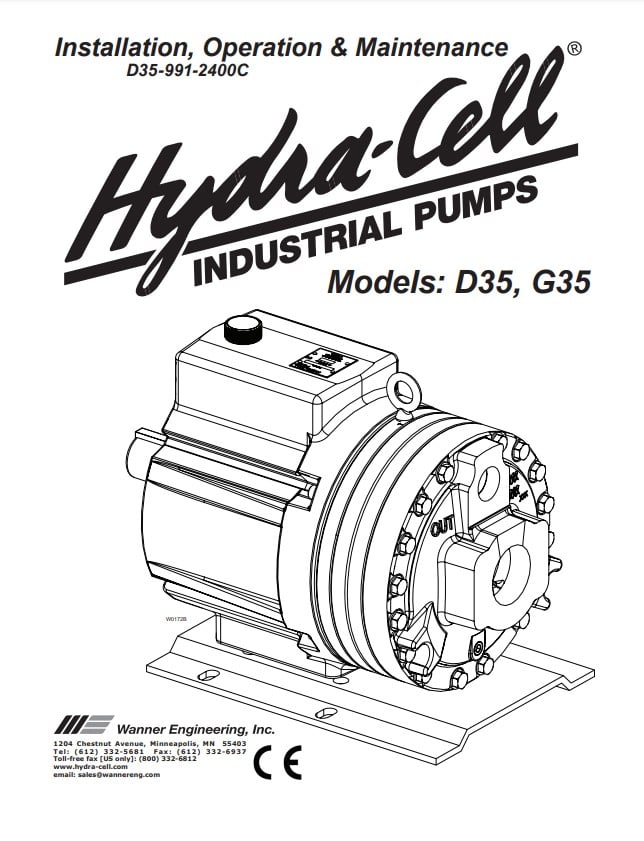

%20G35%20Series%20(Metric)/d35-g35%20installation%20and%20service%20manual.jpg)

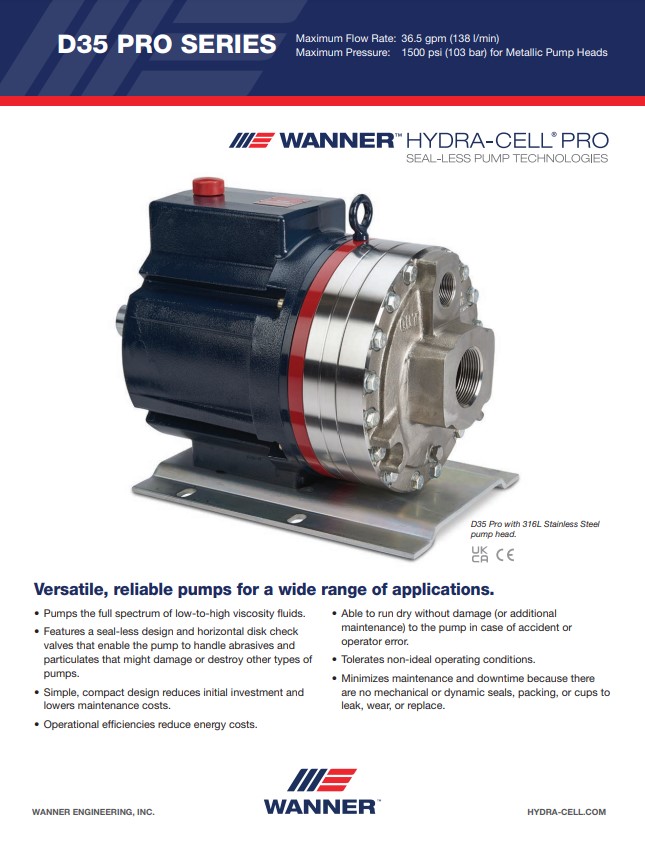

%20G35%20Series%20(Metric)/d35%20specs.jpg)

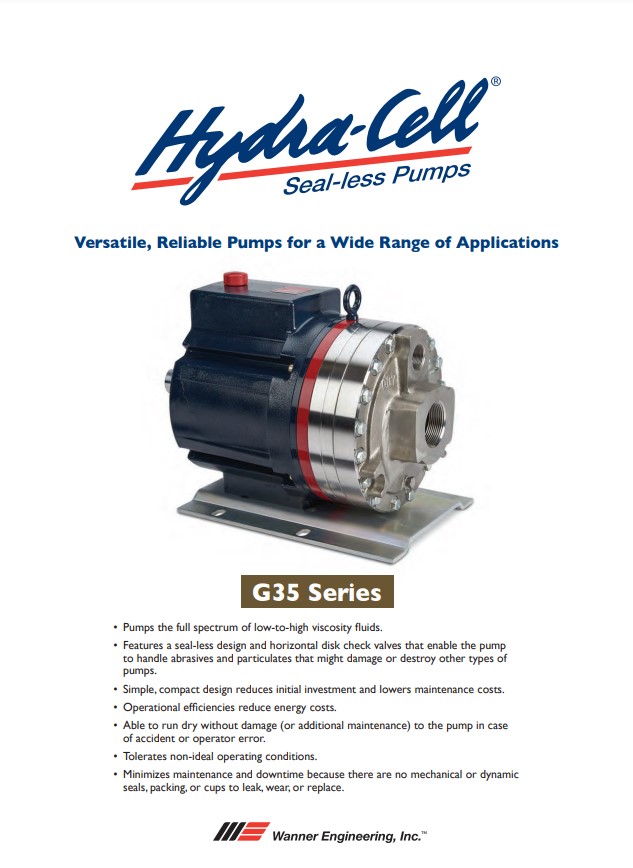

%20G35%20Series%20(Metric)/g35%20specs.jpg)
