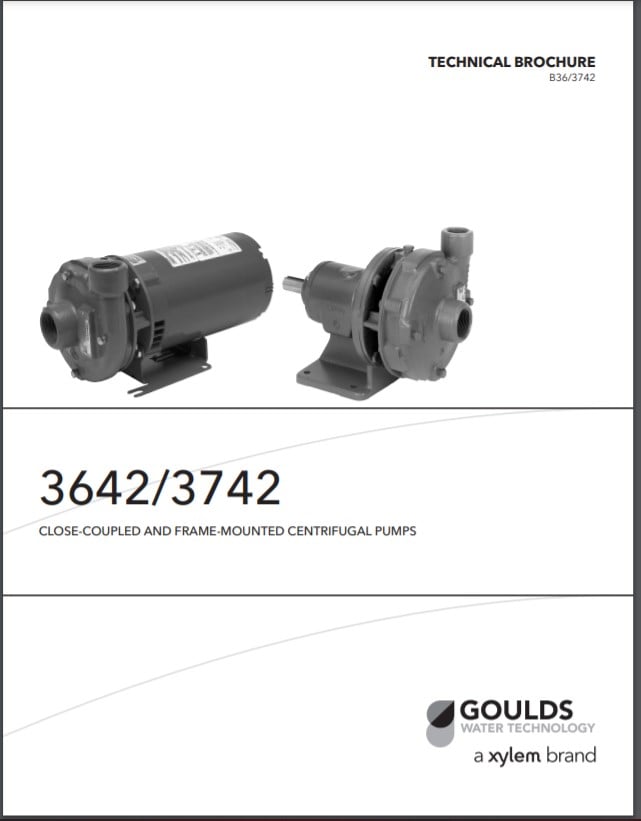

Goulds 3642 End Suction Cast Iron Pumps
Goulds Water Technology combines over 155 years of pump experience with the most modern design and manufacturing systems—deep drawn metal fabrication, laser cutting, laser welding, precision casting, and worldwide design systems—plus a total commitment to quality based on full performance testing of every pump Goulds make.
-
• Cast iron, bronze, investment cast 316 stainless steel and 304 stainless steel pump-end materials of construction.
-
•1 x 1 1/4-5 through 8 x 10- 13 sizes.
-
• Close coupled, frame mounted or engine drive configuration.
-
• Capacities to 4500 US GPM(1000 m3/hr.).
• Heads to 500 ft. TDH (152 m). -
• Working pressure to 250 PSI.
-
• Temperatures to 250º F. (120º C.).
-
• ANSI Flanged and NPT Connections.
-
• Motors 1 & 3 phase. 50 or 60 hertz ODP, TEFC or explosion proof enclosures 3500 & 1750 RPM.
-
• Standard John Crane mechanical seals with high temperature and chemical duty options.
For more information on the Goulds 3642 End Suction Cast Iron Pump please contact us at: 1-877-624-5757.
