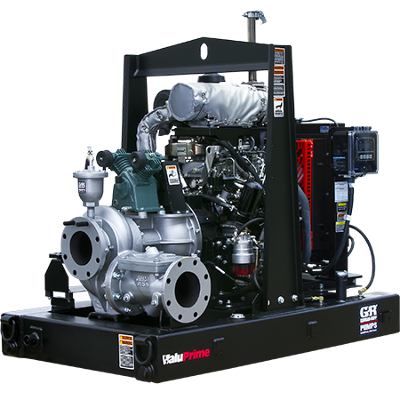

Gorman-Rupp’s new line of ValuPrime® priming-assisted centrifugal pumps is designed to dewater your job site without taking a chunk out of your bottom line.
For applications not requiring higher head and higher flow, VPA Series™ pumps offer the same quality components you have grown to expect from the experts at Gorman-Rupp.
ValuPrime pumps are available in 4” and 6” configurations and can handle non-compressible, spherical solids up to 3” in diameter. Each pump comes equipped with a seal that provides dry run capability and the latest in final Tier iV engine technology. These pumps provide flows up to 1520 GPM and heads up to 150’ – keeping your site dry and your project on track.
Gorman-Rupp is committed to taking care of your dewatering needs long after delivery. The quality manufacturing and testing that goes into every VPA Series pump guarantees long-lasting, trouble-free operation. And, we back every part and working component with a one-year/unlimited hour warranty to keep you up and running for the long-haul.
Gorman-Rupp's 4" and 6" Valuprime pumps are available with D.O.T.-approved wheel kit or drag base for improved portability around the job site.
Applications:
- Floodwater/storm standby
- General Job site dewatering
- Bypass operation – rivers/dams
- Dust control
- Water/street departments
Specifications
| Size | 4" (100 mm), 6" (150 mm) |
| Max Capacity | 1520 GPM (96 lps) |
| Max Head | 150' (46 m) |
| Max Solids | 3" (76 mm) |
| Materials of Construction | Cast Iron |
| Horsepower | 24 HP to 48 HP |
Models
| Item | Size | Casing | Impeller / Rotor | Drive | Flange | Seal |
| VPA4A60C-3CH1 FT4 | 4 x 4 | Cast Iron | Ductile Iron | Diesel Engine | Silicon Carbide | |
| VPA6A60C-4LE2T FT4 | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | Silicon Carbide |

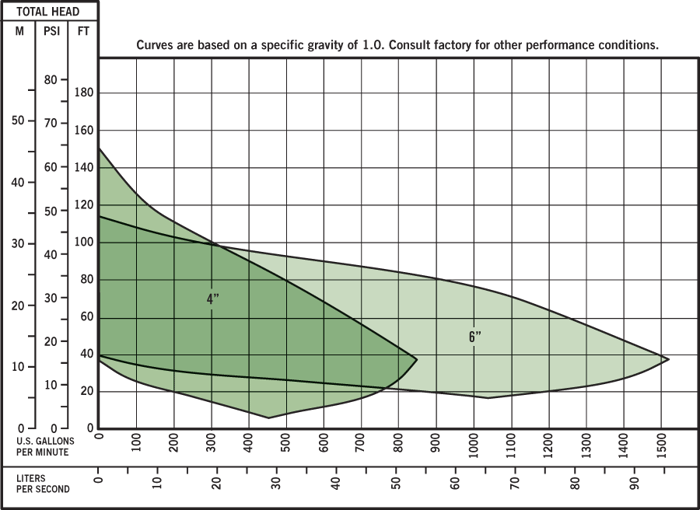

Composite Curve
