Save money and improve safety with above ground controls and valves for your submersible pumps.

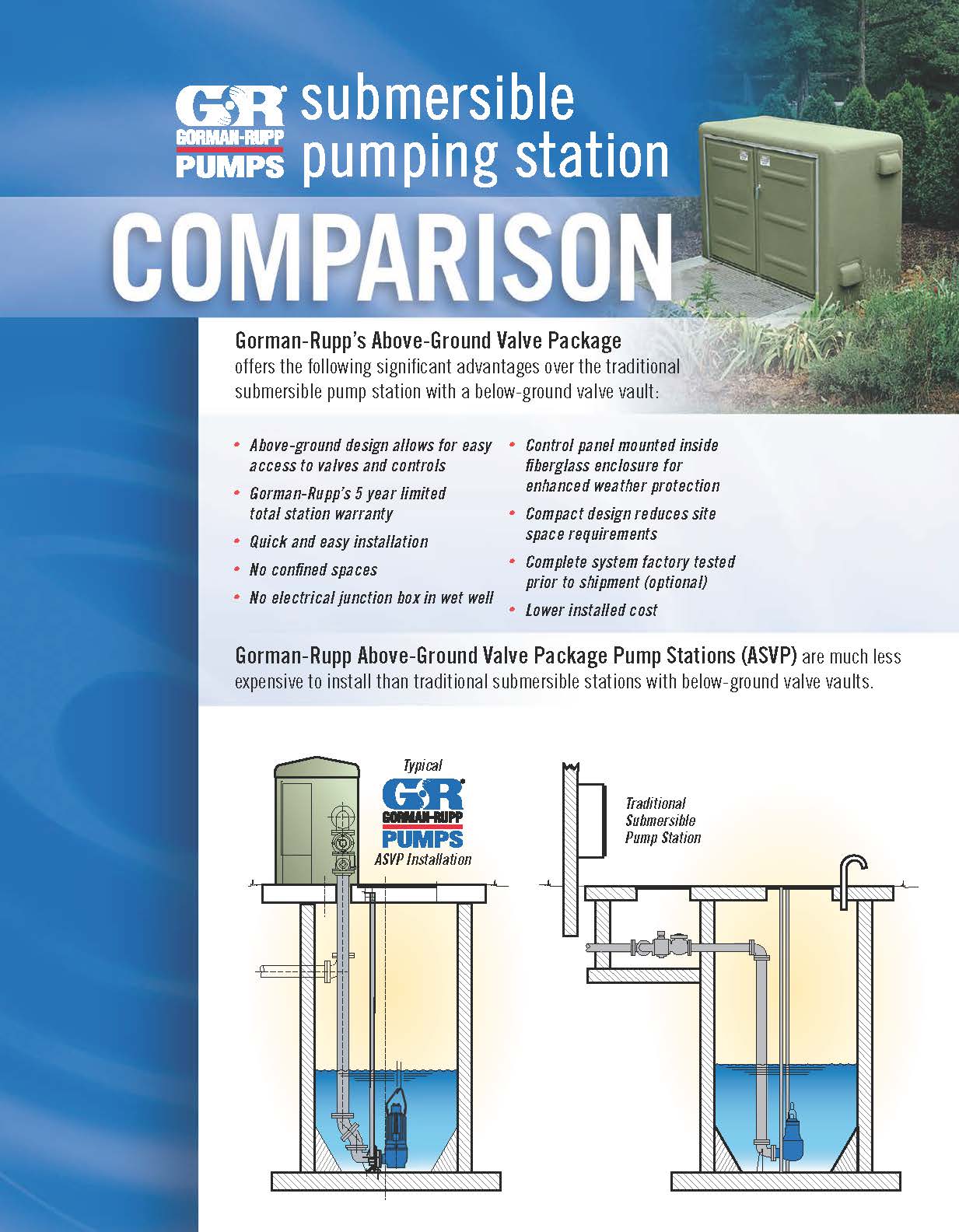

The unique, NFPA 820-compliant ReliaSource® Above-Ground Submersible Valve Package (ASVP) System can revolutionize your submersible pump applications. By placing controls and valves above ground in a compact and durable fiberglass enclosure, the ASVP System eliminates the need for a separate valve pit. As a result, you'll reduce site space requirements, dramatically reduce installation time and associated costs, and improve worker safety by eliminating the need for service personnel to enter hazardous, confined spaces. Like all ReliaSource packaged systems, the ASVP System can be customized to accommodate your pumping requirements. And you can count on it deliver reliable, trouble-free solids-handling performance year after year.
ReliaSource stands for lift stations you can rely on. Guaranteed.
ReliaSource lift stations include above- and below-ground pumping stations that are 100% custom-engineered, manufactured, assembled and pretested by the experts at Gorman-Rupp in our state-of-the-art facilities. That means when you choose a ReliaSource lift station to meet your sewage and solids-handling needs, you choose the ultimate in reliability, long-lasting performance and guaranteed value.
Gorman-Rupp developed the ReliaSource line of complete packaged lift stations to eliminate costly service interruptions that result from inferior lift station components. By putting the Gorman-Rupp name on the entire lift station, from the pumps, to the enclosures, controls and valves, we can custom-engineer a quality pumping system from the ground up. We can deliver it to your location, ready for immediate installation. We can simplify your parts and service needs. And we can guarantee your investment for the long haul with the industry's best warranty.
Gorman-Rupp has manufactured more than 16,000 pump stations over the last 50 years and our world class team of distributors has worked closely with thousands of municipalities around the world, making us the proven experts in developing, specifying and servicing complete packaged lift stations. If you want a lift station that performs as it should and meets your sewage and solids-handling requirements year after year, make ReliaSource your single source for lift station satisfaction today.
Specifications
| Size | 3" (80 mm), 4" (100 mm), 6" (150 mm) |
| Max Capacity | 1600 GPM (101 lps) |
| Max Head | 128' (39 m) |
| Max Solids | 3" (76 mm) |
| Max Temperature | 104 F (40 C) |
| Motor - Voltage | 230 V 1P, 230 V 3P, 460 V 3P |
| Motor - Cycles | 60 Hz |
| Horsepower | 3 HP - 50 HP |
Features
Pumps
- Available with Infinity SF Series® slide rail-mounted
submersible pumps - Designed for easy maintenance and constructed for long life
Enclosure
- Durable fiberglass construction resists corrosion, mildew, fungus, mold and UV rays
- Provides a superior barrier to caustic or acidic atmospheres
- Attractive, economical, compact design
- Permits safe and easy access to controls and valves
for maintenance and service - Enclosure options are available to accommodate larger pumps
- Vandal-resistant design for added security
Controls
- Robust, custom engineered, NEMA-rated automatic controls to operate pump function and warning systems
- Choose from a variety of adjustable pressure controls, H-O-A selectors, overload reset buttons and circuit breakers
for station accessories - Clearly marked field connections for fast and efficient
electrical hook-up - Available U.L. and C.S.A. listed
Bypass Connection Options
- Discharge bypass connection permits emergency portable bypass pump access to pump station force main after isolation of the pumps
- Suction bypass connection incorporates opening to allow emergency portable bypass pump access to pump station wet well
- Complete line of automatic and manual-start portable engine driven pumps for bypass
Warranty
- Industry-leading, 60-month warranty
- Covers the entire packaged system--enclosure, pumps,
valves and controls
