The ideal sewage pumping station for residential areas.

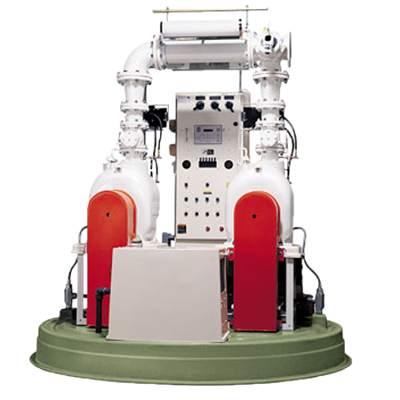

With ReliaSource® Below-Ground Lift Stations, the only thing you see above the ground is an inconspicuous, low-silhouette entrance tube, making these packaged systems an ideal choice for residential settings. Because the self-priming pumps in these lift stations allow for shallow burial, installation is easy and inexpensive, and there's no need for elevators or platforms. The lift stations are pre-engineered and packed with the performance and control features you need most, and they can be fully customized to meet your specific sewage pumping requirements. Choose from an extensive selection of pumps, motors, controls, piping and accessories. We will build your unit to spec and deliver it to your job site, ready for lowering into position over the wet well. Simply hook up the piping and power connections for long-lasting, trouble-free, heavy-solids handling performance.
ReliaSource stands for lift stations you can rely on. Guaranteed.
ReliaSource lift stations include above- and below-ground pumping stations that are 100% custom-engineered, manufactured, assembled and pretested by the experts at Gorman-Rupp in our state-of-the-art facilities. That means when you choose a ReliaSource lift station to meet your sewage and solids-handling needs, you choose the ultimate in reliability, long-lasting performance and guaranteed value.
Gorman-Rupp developed the ReliaSource line of complete packaged lift stations to eliminate costly service interruptions that result from inferior lift station components. By putting the Gorman-Rupp name on the entire lift station, from the pumps, to the enclosures, controls and valves, we can custom-engineer a quality pumping system from the ground up. We can deliver it to your location, ready for immediate installation. We can simplify your parts and service needs. And we can guarantee your investment for the long haul with the industry's best warranty.
Gorman-Rupp has manufactured more than 16,000 pump stations over the last 50 years and our world class team of distributors has worked closely with thousands of municipalities around the world, making us the proven experts in developing, specifying and servicing complete packaged lift stations. If you want a lift station that performs as it should and meets your sewage and solids-handling requirements year after year, make ReliaSource your single source for lift station satisfaction today.
Specifications
| Size | 3" (80 mm), 4" (100 mm), 6" (150 mm), 8" (200 mm), 10" (250 mm) |
| Max Capacity | 3300 GPM (208 lps) |
| Max Head | 155' (47 m) |
| Max Solids | 3" (76 mm) |
| Max Temperature | 160 F (71 C) |
| Motor - Voltage | 200 V 3P, 230 V 1P, 230 V 3P, 460 V 3P |
| Motor - Cycles | 60 Hz |
| Horsepower | 2 HP - 75 HP |
Features
Pumps
- Accommodates Gorman-Rupp Super T Series® or Ultra V Series® self-priming centrifugal, heavy duty solids-handling pumps
- Specifically designed for sewage and waste
water handling applications - Duplex or triplex pump configurations sized to meet
your pumping requirements - Heavy-duty construction and easy-to-service design
- Shallow burial can save up to 25 feet of digging, greatly reducing installation costs
Enclosure
- Durable fiberglass construction resists corrosion, mildew, fungus, mold and UV rays
- Provides a superior barrier to caustic or acidic atmospheres
- Vandal-resistant design for added security
Controls
- Robust, custom engineered, NEMA-rated automatic controls to operate pump function and warning systems
- Choose from a variety of adjustable pressure controls,
H-O-A selectors, overload reset buttons and circuit breakers
for station accessories - Clearly marked field connections for fast and efficient
electrical hook-up - Available U.L. and C.S.A. listed
Warranty
- Industry-leading, 60-month warranty
- Covers the entire packaged system--enclosure, pumps,
valves and controls
