Gatewood GDE Compact Water Booster System
Water Supply Features:
– Supply “DCS” controlled, high-pressure, pulse-free and filtered water to your edge trim or shower system.
Gatewood GDE Compact Water Booster System Description:
– 32″w x 30 1/2″h x 16 7/8″d
– Premium quality construction
– High quality industrial components, wash down duty and built to last
– Maximum control capabilities
– Optional equipment available:
– Magnetic flowmeter
– Stainless duplex filter packages
– Deaeration tank
– Water heater

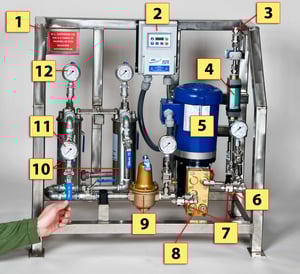

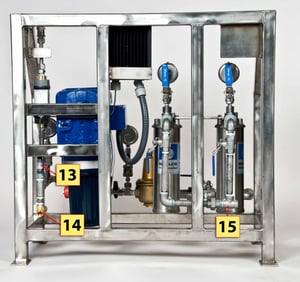

Gatewood GDE Compact Water Booster System Components (refer to pictures below):
| 1 – All Stainless Base Frame |
| 2 – NEMA-4X Motor Controller With Discharge Press Set Point Control |
| 3 – Water Discharge Connection |
| 4 – Flow Indication With Flow Rate |
| 5 – Mill & Chemical Inverter Duty TEFC Motor |
| 6 – Pressure Relief Valve |
| 7 – Pump Vent/Drain Valves |
| 8 – Hi-Pressure Positive Displacement Water Pump |
| 9 – Inlet Water Pressure Regulating Valve |
| 10 – Optional Dual Stainless Filter Assembly With Stainless Pleated Reusable Cartridges |
| 11 – Differential Pressure Indication for Filter Maintenance |
| 12 – All Stainless Liquid Filled Gauges with Isolation |
| 13 – Water Pressure Sensor |
| 14 – Pressure Relief Valve |
| 15 – Water Pressure Sensor |
Front
