EvacuBlast and Gamavac In-Place Barrel and Drum Cleaning Systems
Eliminate the time-consuming and labor-intensive task of moving and rotating your barrels and drums for cleaning and draining with the EvacuBlast or Gamavac barrel and drum cleaning systems. The systems work with the GJ DB, which incorporates an extraction wand engineered into the cleaning machine. However, in order to use this machines you need a vacuum system and a pressure washer which operates at 3.5 to 5.5 gpm (13 to 23 lpm). The EvacuBlast (With a Pressure Washer) and Gamavac (Without a Pressure Washer) are all in one systems to meet these requirements.

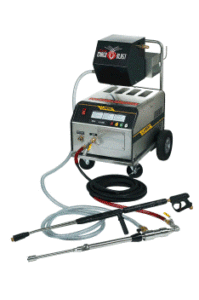

EvacuBlast – Vacuum System with Pressure Washer
Components:
- GJ DB
- Air Operated Diaphragm Pump
- 50 feet (15m) of 3/4 in. diameter clear hose
- Portable Electric High Pressure Washer (Hot water available)
- Portable Cart
Operating Range – GJ DB:
- Pressure: 500+ psi (35 bar)
- Temperature: 32° to 180°F (0° to 82°C)
- Flow: 4.2 gpm (18 lpm)
- Wash Cycle Time: 2-4 min.
- Impact: 1-2 lbs (0.50-1kg)
Materials:
- Heavy Duty, Stainless Steel
Overall Dimensions:
- 45” x 32” x 38” H (1 x .80 x 1.95 H m)
- Weight: Approx. 250 lbs (115 kg)
Requirements:
- Electric: 220/440 v, 3 phase, 16 amps (Others available)
- Air: 5 cfm @ 90 psi
Features:
- Pump/Motor
- 6 HP Electric (Hot water available)
- 4.2 gpm (18 lpm)
- 2750 psi max (190 bar)
- 6 ft. Electrical cord (2m)
- Insulated trigger gun with safety lock and quick connect dual lance and 50’ of high pressure hose
- Cart – on wheels for easy maneuverability

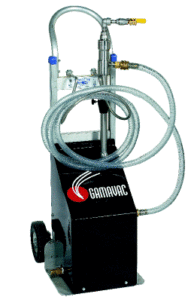

Gamavac – Vacuum System without Pressure Washer
Components:
- GJ DB
- High Pressure Supply Side In-line Y-Strainer
- Air Operated Suction Pump
- 50 ft. (15m) of 3/4 in. diameter clear hose
- Portable Cart
Operating Range – GJ DB:
- Pressure: 500+ psi (35 bar)
- Temperature: 32° to 180°F (0° to 82°C)
- Flow: 3.5-6 gpm (13-23 lpm) Typically 4 gpm (18 lpm)
- Wash Cycle Time: 2-4 min.
- Impact: 1-2 lbs (0.5 -1 kg)
Overall Dimensions:
- 21” x 17.5” x 49” H (0.5 x 0.45 x 1.25 H m)
- Weight: Approx. 75 lbs (35 kg)
Requirements:
- Air: 5 cfm @ 90 psi
- Pressure Washer: 3.5-6 gpm (13-23 lpm) Typically 4 gpm (18 lpm)
Features:
- Pump/Motor
- Air Operated Diaphragm Pump
- 0-28 gpm (0-105 lpm)
- Cart – on wheels for easy maneuverability
