Finish Thompson UC2110 Sealless Pumps
Fabricated from robust ductile iron and fortified with a DuPont Tefzel (EFTE) lining, the Finish Thompson ULTRAChem UC Series ANSI dimensional magnetic drive pumps offer unmatched corrosion resistance. These pumps are meticulously engineered to excel in the most challenging of applications.
Applications
- Metals manufacturing
- Electronics
- Pharmaceuticals
- Biodiesel
- Fume scrubbers
Finish Thompson UC2110 Sealless Pump Specifications
________________________________________________________________________________________________________________________
Flange |
|
| @3500 RPM | @2900 RPM | |
| Flow Range*: | 15 to 201 gpm | 3.4 to 39.5 m3/h |
| Maximum Head: | 492 ft | 102 m |
| Power Range**: | 5.6 to 40.2 hp | 1.9 to 18.1 kW |
| *See Performance tab for individual impeller diameter capability **Smallest to largest impeller on 1.0 s.g. |
||
| Shaft Materials: | SiC or Dri-Coat SiC |
| Maximum Temperature: | 250º F (121º C) | |
Kalrez® is a registered trademark of DuPont Performance Elastomers Simriz® Perfluoroelastomer is a registered trademark of the Simrit® division of Freudenberg-NOK Aflas® is a trademark of the Asahi Glass Co., Ltd. |
||

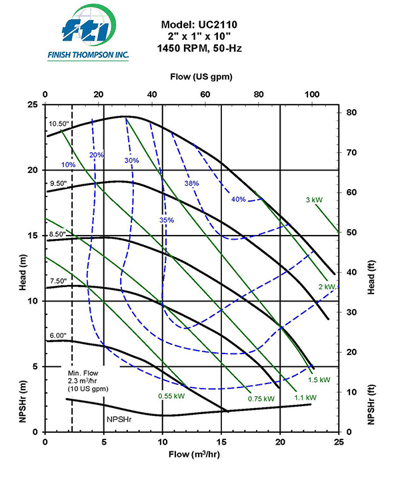

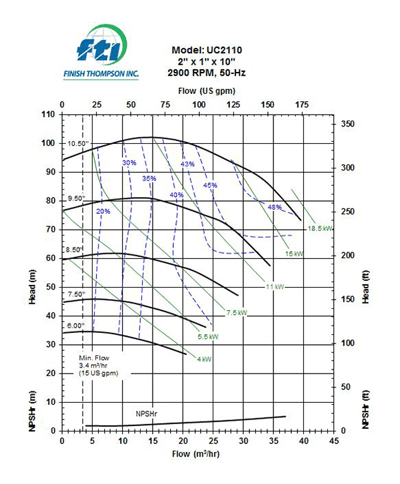

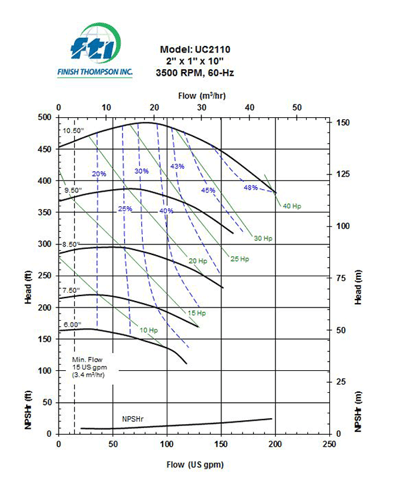

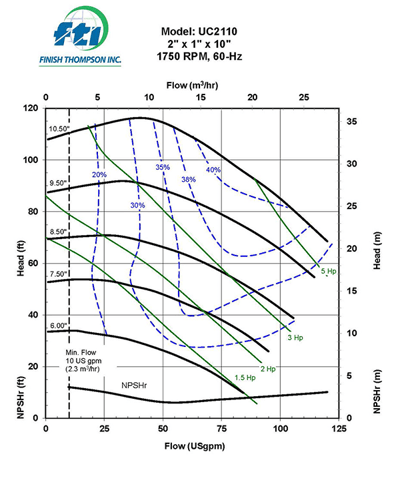

Finish Thompson UC2110 Sealless Pump Performance
________________________________________________________________________________________________________________________
