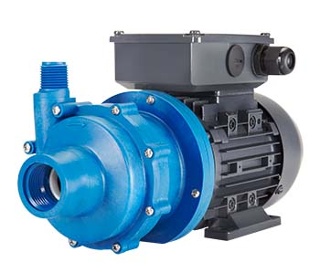

Finish Thompson Sealless Magnetic Drive Pumps - DB Series & SP Series
Magnetically coupled, sealless centrifugal pumps. While NOT manufactured from FDA compliant materials, Finish Thompson DB Series and SP Series pumps are designed from the ground up to pump corrosive chemicals.
Features:
- No mechanical seal – Powerful rare earth magnetic drive system eliminates the troublesome mechanical seal.
- Corrosion resistant – Engineered for the most aggressive liquids, manufactured from polypropylene or PVDF.
- Run dry ability – Makes them less prone to operator error or system upset.
- Self-priming option – SP Series pumps can lift fluid from as deep as 25 feet (7.6 meters) below the pump or can pull liquid out of the top of a tank eliminating through-the-sidewall bulkhead fittings.
Finish Thompson DB Series
 |
|
|
|
|
 |
| DB3 | DB4 | DB5 | DB5.5 | DB6 | DB6H |
|
Maximum Head: 20 ft Maximum Flow: 15 gpm |
Maximum Head: 29ft Maximum Flow: 18 gpm |
Maximum Head: 35 ft Maximum Flow: 19 gpm |
Maximum Head: 31 ft Maximum Flow: 30 gpm |
Maximum Head: 33 ft Maximum Flow: 40 gpm |
Maximum Head: 54 ft Maximum Flow: 42 gpm |
|
|
|
|
 |
|
| DB7 | DB8 | DB9 | DB10 | DB11 | DB15 |
|
Maximum Head: 34 ft Maximum Flow: 69 gpm |
Maximum Head: 45 ft Maximum Flow: 61 gpm |
Maximum Head: 67 ft Maximum Flow: 46 gpm |
Maximum Head: 51 ft Maximum Flow: 96 gpm |

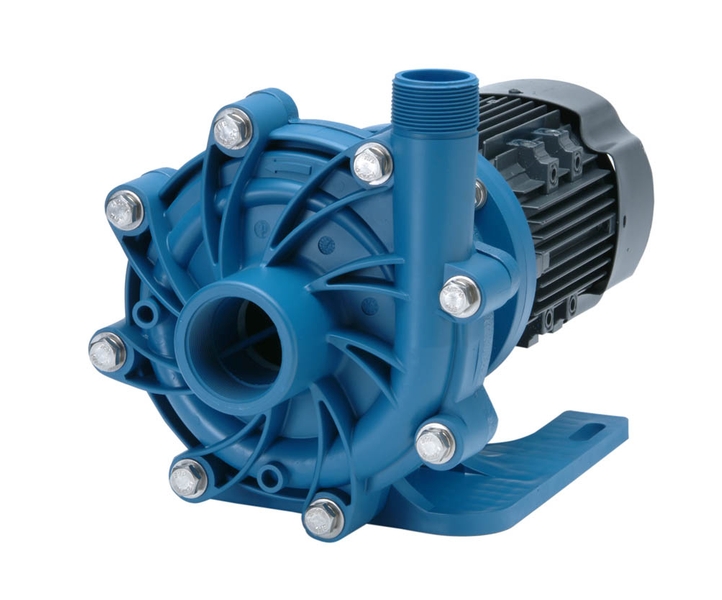

Maximum Head: 74 ft Maximum Flow: 116 gpm |
Maximum Head: 98 ft Maximum Flow: 136gpm |
 |
| DB22 |
|
Maximum Head: 201 ft Maximum Flow: 221 gpm |
Finish Thompson SP Series
|
|
 |
|
|
| SP10 | SP11 | SP15 | SP22 |
|

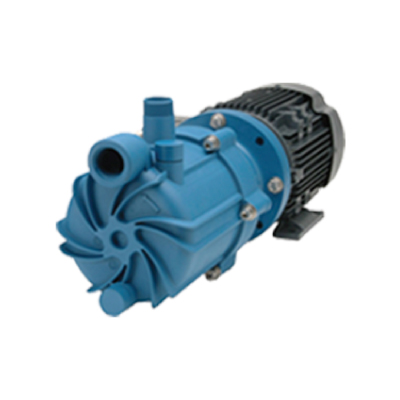

Maximum Head: 63 ft Maximum Flow: 55 gpm |
Maximum Head: 68 ft Maximum Flow: 104 gpm |
Maximum Head: 90 ft Maximum Flow: 120 gpm |
Maximum Head: 175 ft Maximum Flow: 253 gpm |
Sealless Magnetic Drive Pumps: Ideal for Mining Operations
Mining operations demand pumps of exceptional quality and reliability to facilitate extraction. Moreover, the hazardous byproducts often associated with mining necessitate careful handling. In pursuit of safe and efficient mining practices, the use of sealless magnetic drive pumps is paramount. Crafted specifically for rugged chemical applications, Finish Thompson's mag-drive pumps stand as the leading solution across a broad spectrum of mining tasks.
