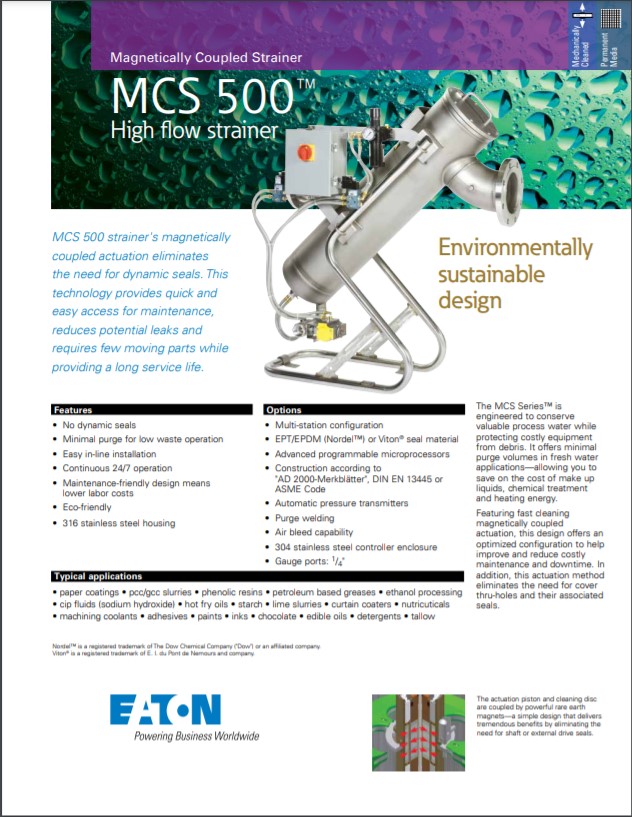

EATON MCS 500 High Flow Mechanically Cleaned Strainers magnetically coupled actuation eliminates the need for dynamic seals. This technology provides quick and easy access for maintenance, reduces potential leaks, and requires few moving parts while providing a long service life.
EATON MCS 500 High Flow Mechanically Cleaned Strainers are engineered specifically to help conserve valuable process water while protecting costly processing equipment from debris.
Featuring fast cleaning magnetically coupled actuation, the design offers an optimized configuration to help improve and reduce costly maintenance and down time. In addition, this actuation method eliminates the need for lid-thru holes and their associated seals.
Designed to handle fresh water from treated sources, the High Flow MCS-500 addresses the challenges water filtration can bring to industrial manufacturing.
EATON MCS 500 High Flow Mechanically Cleaned Strainers Features
- No dynamic seals
- Minimal purge for low waste operation
- Easy in-line installation
- Continuous 24/7 operation
- Maintenance-friendly design means lower labor costs
- Eco-friendly
- 316 stainless steel housing
Options
- 304 stainless steel controller enclosure
- Advanced programmable microprocessors
- Air bleed capability
- Automatic pressure transmitters
- Construction according to “AD 2000-Merkblätter”, DIN EN 13445 or ASME Code
- EPT/EPDM (Nordel™) or Viton® seal material
- Gauge ports: 1/4″
- Multi-station configuration
- Purge welding
EATON MCS 500 High Flow Mechanically Cleaned Strainers Features |
|
|---|---|
| Approximate Weight | 350 lb (159 kg) |
| Service Height | 66 in (1,676 mm) |
| Flow rates at 100 μm | Up to 500 gpm (114 m³/h) |
| Operating pressure | 30 – 150 psi (2 – 10.5 bar) |
| Operating temperature, max. | 180 °F (82 °C) |
| Viscosity | Water/water-like fluids |
| Standard retention* | 150 – 1,100 microns |
| Housing material | 316 stainless steel |
| Elastomers | EPT/EPDM (Nordel) or Viton |
| Process connections | 6 in 150# flanged/DN 200 flanged |
| Purge connection | 1 1⁄2 in NPT/1 1⁄2 in BSPT |
| Air for actuator drive (clean, dry, non lubricated air) |
80 psi (5.5 bar) min. – 116 psi (8 bar) max. 5.0 cfm (141.5 l/min) |
| Electrical for controllers | 115 VAC or 230 VAC 50/60 Hz |
| Semi-auto voltage | 24 VAC, 115 VAC, 230 VAC 24 VDC 115/230 VAC |
| *Tighter retentions available. | |
Typical Applications for EATON MCS 500 High Flow Mechanically Cleaned Strainers
- Adhesives
- CIP Fluids (Sodium Hydroxide)
- Chocolate
- Curtain Coaters
- Detergents
- Edible Oils
- Ethanol Processing
- Hot Fry Oils
- Inks
- Lime Slurries
- Machining Coolants
- Nutricuticals
- PCC/GCC Slurries
- Paints
- Paper Coatings
- Petroleum Based Greases
- Phenolic Resins
- Starch
- Tallow
Markets:
- Chemicals
- Ethanol
- Food and Beverage
- Manufacturing
- Oil and Gas
- Pulp and Paper
- PetroChem
- Pharmaceuticals
- Water
