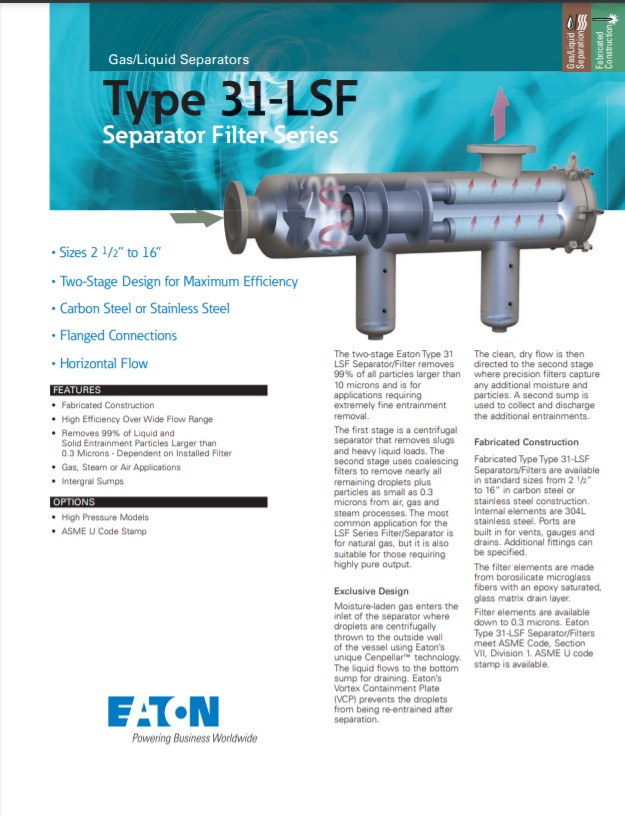

EATON 31 LSF Two Stage Gas Liquid Separators for applications requiring extremely fine entrainment removal. The first stage is a centrifugal separator that removes slugs and heavy liquid loads. The second stage uses coalescing filters to remove nearly all remaining droplets plus particles as small as 0.3 microns from air, gas and steam processes. The most common application for the LSF Series Filter/Separator is for natural gas but it is also suitable for any application requiring highly pure
EATON 31 LSF Two Stage Gas Liquid Separators Features
- Fabricated construction
- High efficiency over wide flow range
- Removes over 99% of liquid and solid entrainment particles larger than 0.5 microns – dependent on filter installed
- Gas, steam or air applications
- Integral sumps
EATON 31 LSF Two Stage Gas Liquid Separators Options
- High pressure models
- ASME U code stamp
Exclusive Design
Moisture-laden gas enters the inlet of the separator where droplets are centrifugally thrown to the outside wall of the vessel by a unique Cenpellar™. The liquid flows to the bottom sump for draining. Eaton’s Vortex Containment Plate (VCP) prevents the droplets from being re-entrained after separation. The clean, dry flow is then directed to the second stage where precision filters capture any additional moisture and particles. A second sump is used to collect and discharge the additional entrainments.
Fabricated Construction
EATON 31 LSF Two Stage Gas Liquid Separators are available in standard sizes from 2 1/2” to 16” in carbon steel or stainless steel construction. All internal separating elements are 304L stainless steel. Other sizes can be ordered for special applications. Ports are built in for vents, gauges and drains. Additional fittings can be specified. The filter elements are made of borosilicate microglass fibers, epoxy saturated, with glass-matrix drain layer. Filter elements can be ordered in a range of micron ratings down to 0.5 microns. Eaton Type 31-LSF Gas/Liquid Separator/Filters meet ASME Code, Section VII, Division 1. ASME U code stamp is available.
Expert Help is Available
Choosing the right gas/liquid separator can present unique problems not encountered in choosing other pipeline components. Why not take advantage of our application experience with gas/liquid separators? Application specialists are available to help you every step of the way…from initial selection, to installation and through start-up…
