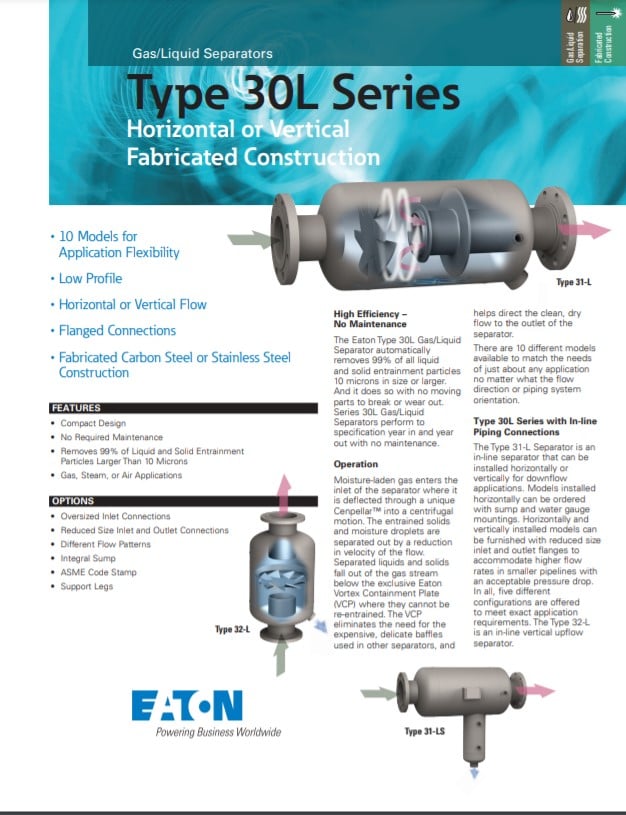

Eaton 30L Gas Liquid Separators can be installed horizontally or vertically for down flow applications.
Eaton 30L Gas Liquid Separators Features
- Low-profile, compact design
- No moving parts to wear out, no required maintenance
- When properly sized, installed, and drained, will remove up to 99% of all liquid and solid entrainment where particle size exceeds 10 microns
- Ten different models to match the needs of any application’s flow direction or piping system orientation
- Exclusive Vortex Containment Plate (VCP) System
Options
- Oversized inlet connections
- Reduced size inlet and outlet connections to accommodate higher flow rates in smaller pipelines with an acceptable pressure drop
- Integral sump and water gauge mounting on models installed horizontally
- ASME code stamp
 |
High Efficiency Eaton 30L Gas Liquid Separators automatically removes up to 99% of all liquid and solid entrainment particles 10 microns in size or larger. In addition, it does so with no moving parts to break or wear out. Series 30 gas liquid separators perform to specification year in and year out with no required maintenance. |
 |
Exclusive Design Centrifugal downward motion deflects moisture-laden gas as it enters the inlet of the separator. The entrained solids and moisture droplets separate from the gas by a reduction in velocity. Separated liquid and solids fall into a reservoir where Eaton’s exclusive Vortex Containment Plate (VCP) ensures that they cannot be re-entrained. The Vortex Containment Plate then directs the clean, dry flow to the outlet. The VCP eliminates the need for expensive, delicate baffles used in ordinary separators. |
Vortex Containment Plate
Moisture laden gas enters the inlet of the separator where it is deflected by Eaton’s unique Cenpellar™ into a centrifugal motion. The entrained solids and moisture droplets are separated out by a reduction in velocity. Separated liquid and solids fall into the separators integral drain trap where Eaton’s exclusive Vortex Containment Plate (VCP) ensures that they cannot be re-entrained. The VCP is constructed with a series of carefully placed rings and plates that shield the separated liquid from the vortex action within the separator to prevent re-entrainment . The VCP also helps direct the liquid to the drain trap while at the same time moves the clean, dry gas to the separator outlet. With Eaton’s exclusive VCP the need for expensive, delicate baffles that are used in ordinary separators is eliminated.
Maintenance and Spare Parts
Eaton separators have no moving parts. All components are either bolted or welded into place. Therefore parts lists are not available. The separators are bolted, threaded, or welded into the lines. They are self-cleaning, and do not need lubrication or maintenance. For this reason, lubricating, operating and maintenance manuals are not available.
