Custom Spray Nozzle Solutions – Rain Garden Spray Layout
Application #060266
Industry: Agriculture
Application: Rain Garden
Product Description: Rain Garden Layout with WL nozzles
Situation: A Bete customer was designing a rain garden to simulate the difference between runoff on pavement and natural runoff with grass and trees, and its effects. The area they needed to cover was a 20′ (6.1m) diameter circle. They wanted to create the effect of a heavy rainstorm. The customer was also unsure of how much rain needed to flow, although they were thinking about 2 inches per hour.
Solution: Bete Applications Engineers utilized data from an online study that showed rainfalls for heavy storms in cities across the United States; the study is used for the purpose of calculating rooftop runoff rates. The website study showed that a very heavy storm for the area in question was in fact 2.1″ (5.3 cm) per hour. Knowing the flux across the customer’s area, Bete Application Engineers were able to calculate a total flow across the area. Using this total flow calculation, BETE specified the WL 3/4 – 120°, the best type of nozzle for rain simulation, in an array. Bete Applications Engineers have a sizable collection of useful pre-designed nozzle arrays and thus specified a 12-nozzle array that covered the required area. The nozzle array sheets include header layout and placement for all nozzles in the array.

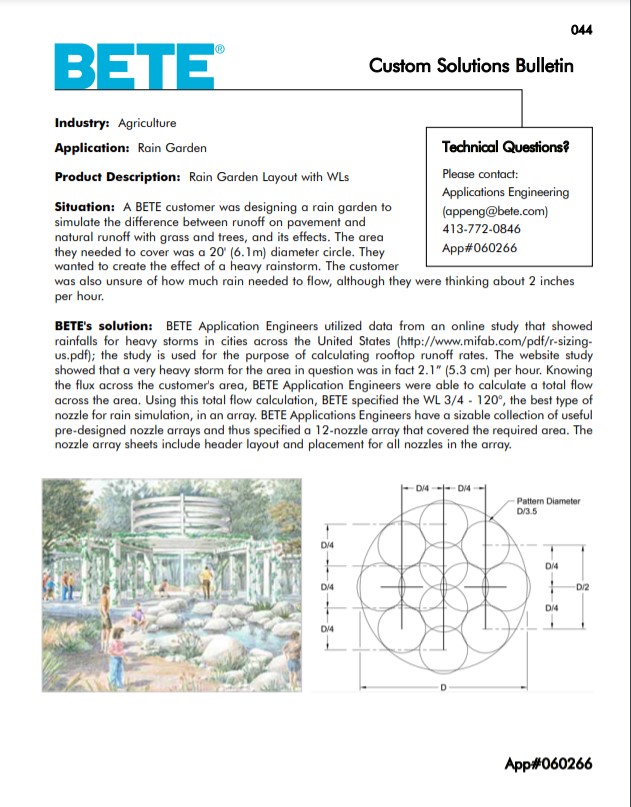

Custom Spray Nozzle Solutions – Rain Garden Spray Layout Drawings and Sketches:
