Application #060731
Industry: Mining
Application: Dust Control
Product Description: Spray Nozzles for Dust Control
Situation: Dust is a chronic problem at many stone or dirt quarries or mines. It can cause health problems, and damage equipment. In addition, it reduces visibility and makes working difficult. Bulk visibility is one of the measurements OSHA uses to determine if dust is not being adequately controlled.
Solution: Controlling dust is a common application in which Bete nozzles are used. Dust control can take many forms. The two main categories are preventative and symptomatic:
Preventative dust control stops dust before it becomes a problem. Wetting piles and roads would be considered preventative dust control. Another often-overlooked method of prevention is controlling dust in process. This can be done by adding a small amount of water to aggregate or whatever material is likely to produce dust as it moves through a process.
Symptomatic dust control is dealing with dust once it is already airborne. This is usually only done when it is not practical to control dust preventatively. One example would be filling dump trucks from a pile with a loader. It is not practical to soak the pile such that the entire pile is damp, but a few well-placed nozzles around a filling point can reduce dust production significantly.
Conveyor Transport: Bete NF Series Adding 3.6 gallons water per ton of crushed stone (1.5% by weight) can greatly reduce the amount of dust generated during a process. This ratio seems to produce ideal results, controlling dust without creating mud or soaking the conveyors. This is best accomplished by using an appropriately sized 90° flat fan nozzle from the NF Series.
Symptomatic Control: Bete TF Series Bete’s TF Series is an excellent nozzle for airborne dust suppression. Generally, the TF6, TF8, or the TF10 is used for the best effectiveness. If spacing must be wider, or significant winds are anticipated, larger sizes may be used. There is some compromise between effectiveness and wind sensitivity, as finer droplets perform better, but are more sensitive to the wind. The table below outlines the performance characteristics of several common TF nozzles for dust suppression. There is no substantial difference between the maximum diameter generated from the 90° and 120°, although the 120° reaches its maximum sooner than the 90° pattern.
Water Truck: Bete FF, Bete SC Series The FF Series fan nozzles are quite popular for water trucks when coverage of a very wide area is necessary. In this type of application two ¾” FF 500 nozzles on either corner of the truck can make quick work of very large areas (50’ wide or more). For single lane wetting or smaller areas, appropriately sized smaller FF or NF nozzles do well. Another effective use of a water truck is for wetting dirt or rock piles, which may produce dust. This can be done with a larger SC Series nozzle. This nozzle can spray an area to a height of approximately 25 feet.
Custom Spray Nozzle Solutions – Dust Control Nozzles Drawings and Sketches:

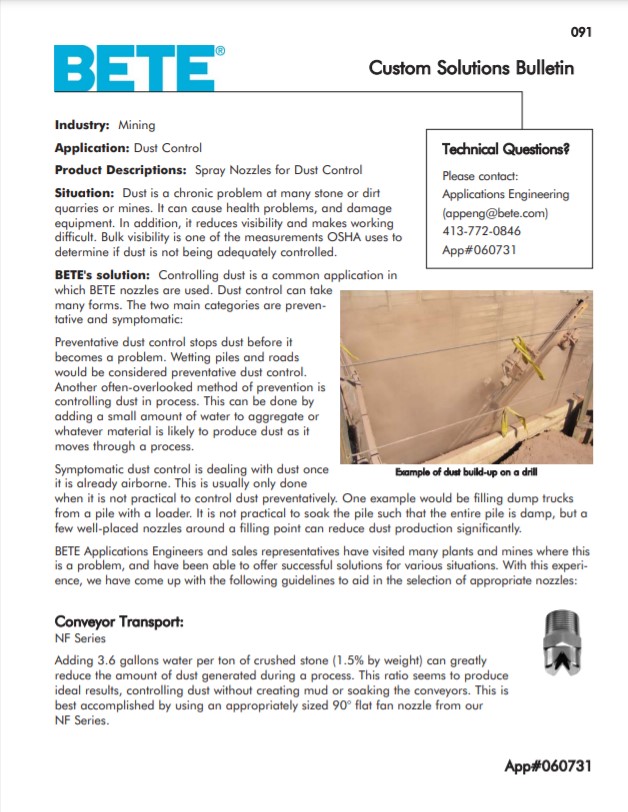

Example of dust build-up on a drill
