Blackmer GNX Series Sliding Vane Pumps

Alignment-Free, Reduced-Speed Positive Displacement Pump for Non-Corrosive Liquids and Petroleum Products

________________________________________________________________________________________________________________________

Part of the Iron Line of sliding vane pumps, these Blackmer® pumps are the market’s only alignment-free, reduced-speed positive displacement pumps. They are suited for both portable and stationary applications. GNX Series pumps include the proven features of Blackmer legacy GX Series pumps but take them to the next level with the incorporation of a commercial-grade, single-stage gearbox. This innovative new gearbox fits between the motor and pump and is held in place by a permanent dowelled connection that creates a structural link between the high-speed and low-speed sides of the system. This results in a pump that will not need to be realigned either at initial installation or following a maintenance procedure, resulting in improved peace of mind for the operator. The pre-grouted GNX composite baseplate adds additional value to the pump, gearbox and motor setup by providing unmatched surface flatness, significant vibration damping, and reduced installation costs.

The GNX and GNXH Series pumps are designed to handle a wide range of non-corrosive, clean industrial liquids and petroleum products and are available in 2-, 2.5-, 3-, and 4-in sizes. The GNX Series pumps have a 90° porting orientation and the GNXH Series pumps have a 180° porting orientation.

Features and Benefits

  • Alignment-free, reduced-speed pumps
  • Robust commercial-grade gear reducer with expanded ratio options
  • Eliminates traditional couplings
  • Retained rotor between bearing design extends mechanical seal life
  • Compact footprint utilizing close coupled, inline design
  • Alignment free design reduces downtime and simplifies maintenance
  • Flexible porting – 90° and 180° options
  • Corrosion resistant composite baseplate with pre-grouted build, flatness of 0.002” per foot, and 24 times increased vibration damping of steel

Advantages of sliding vane technology:

  • Unique sliding-vane pump design self-adjusts for wear to maintain flow rates
  • Excellent self-priming and dry-run capabilities
  • Sliding vane design provides sustained performance and trouble-free operation
  • Easy maintenance: vanes can be easily replaced without removing the pump from the piping system
  • High suction lift and line-stripping capabilities
  • Low maintenance and low life-cycle costs

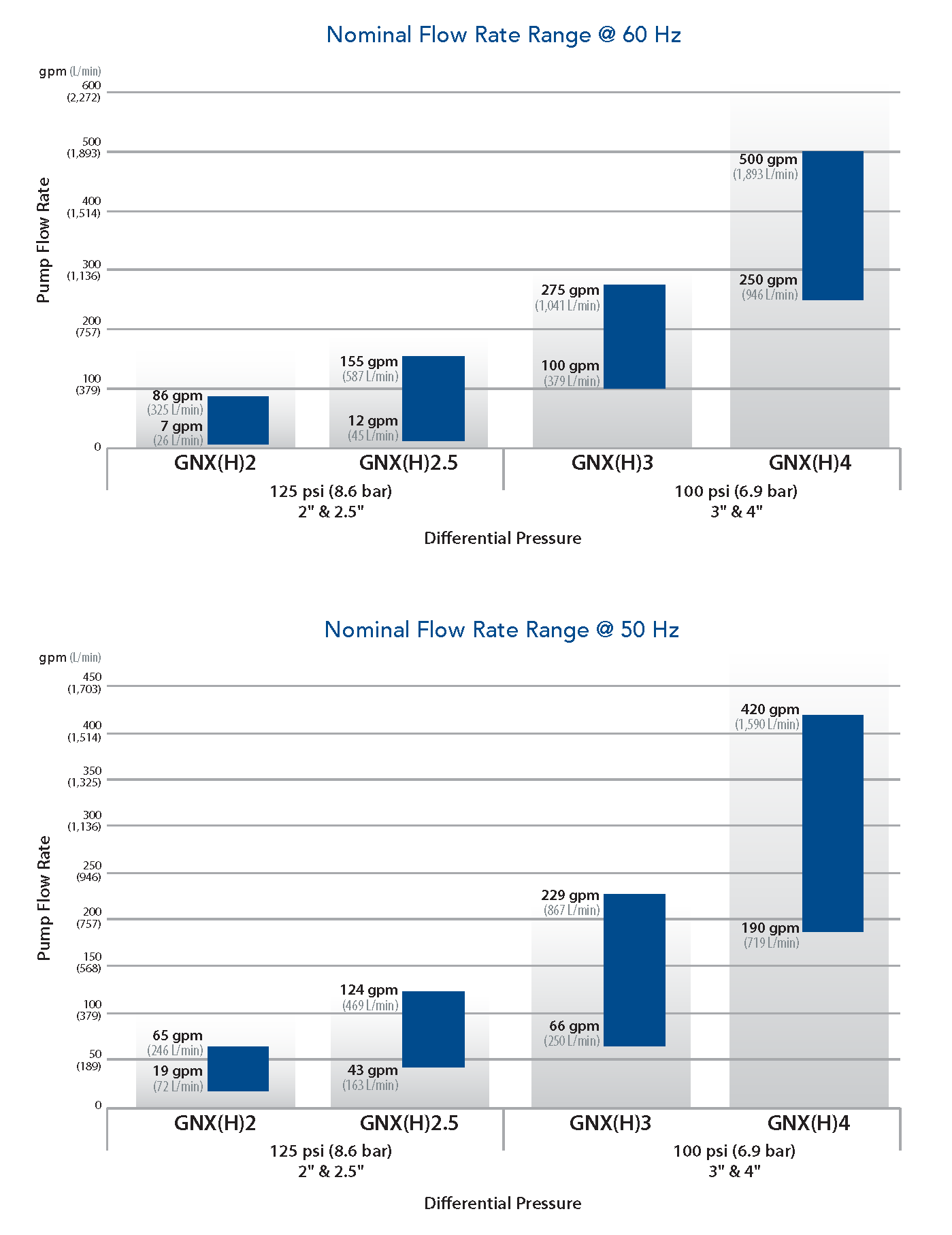

Click Here to see the GNX Nominal Flow Rate Range

Applications

NON-CORROSIVE, CLEAN INDUSTRIAL LIQUIDS
  • Fuel oils
  • Lube oils
  • Jet fuels
  • Gasoline
  • Edible oils
SOLVENTS & THINNERS
  • Esters
  • Ketones
  • Naphthas
  • Ethers
  • Amines
  • Aromatics
  • Alcohols
  • Terpenes
  • Glycols

    ___________________________________________________________________________________________________________________

Performance and Specifications

AVAILABLE MODELS
NOMINAL FLOW RATE RANGE
AVAILABLE CERTIFICATES
  • GNX2
  • GNX2.5
  • GNX3
  • GNX4
  • GNXH2
  • GNXH2.5
  • GNXH3
  • GNXH4
  • GNX2: 7 - 86 gpm (26 - 325 L/min)
  • GNX2.5: 12 - 155 gpm (45 - 587 L/min)
  • GNX3: 100 - 275 gpm (379 - 1,041 L/min)
  • GNX4: 250 - 500 gpm (946 - 1,893 L/min)
  • Hydrostatic Test
  • Performance Test
  • NPSH Test
  • Material (actual or typical)
  • Dimensional (pump only or unit)
DIFFERENTIAL PRESSURE
MIN/MAX SPEED (RPM)
VANE MATERIALS
  • 2" & 2.5": 125 psi (8.6 bar)
  • 3" & 4": 100 psi (6.9 bar)
  • 2" & 2.5": 323 - 814 rpm
  • 3": 332 - 700 rpm
  • 4": 257 - 563 rpm
  • Duravane
  • EC Laminate
  • EC Cast Iron
VISCOSITY
MAXIMUM WORKING PRESSURE (MAWP)
TEMPERATURE
  • 0.2 - 4,250 cP
  • 175 psi (12.1 bar)
  • -25°F to 240°F (-32°C to 115°C)
PRIMARY MATERIALS OF CONSTRUCTION
CONNECTION ORIENTATION
  • Ductile Iron
  • Cast Iron
  • Side Inlet | Top Outlet (GNX)
  • Side Inlet | Side Outlet (GNXH)





Dimensions

________________________________________________________________________________________________________________________

PUMP MODEL   L W H APPROX. WT.
GNX2 in 22-1/5 10-7/16 8-4/5 76 lb
mm 563.9 265.1 223.5 34 kg
GNX2.5 in 24 11-3/8 9-5/8 102 lb
mm 609.6 288.9 244.5 46 kg
GNX3 in 28 13-5/8 12-3/8 150 lb
mm 711.2 346.1 314.3 68 kg
GNX4 in 34-3/8 15-5/8 15-4/7 310 lb
mm 873.1 396.9 395.3 141 kg
GNXH2 in 22-1/5 10-7/16 8-7/8 74 lb
mm 563.6 265.1 225.4 34 kg
GNXH2.5 in 24 11-3/8 9-4/5 93 lb
mm 609.6 288.9 249.2 42 kg
GNXH3 in 28 13-1/2 12-3/8 146 lb
mm 711.2 342.9 314.3 66 kg
GNXH4 in 34-3/8 15-5/8 15-4/7 300 lb
mm 873.1 396.9 395.3 136 kg



Materials of Construction

________________________________________________________________________________________________________________________

PART MODELS MATERIAL
Cylinder

GNX 4, All GNXH Ductile Iron: ASTM 536
 GNX 2, 2.5, 3  Cast Iron: ASTM 48
 Heads GNX(H) 4 outboard  Ductile Iron: ASTM 536
 2, 2.5, 3, GNX(H)4 inboard Cast Iron: ASTM 48
 Relief Valve Cover GNX 4, All GNXH  Ductile Iron: ASTM 536
GNX 2, 2.5, 3  Cast Iron: ASTM 48
Bearing Covers 2, 2.5, 3 Steel
 Cast Iron: ASTM 48
Locknut and Lockwasher GNX(H) 2, 2.5, 3 Only Steel
Rotor All GNX Models Ductile Iron: ASTM 536
Shaft 2, 2.5 High Strength Steel
 3, 4  High Strength Stainless Steel
Relief Valve (R/V) All GNX(H) Models Cast Iron: ASTM 48
Relief Valve Cap 2, 2.5 Steel
3, 4  Ductile Iron: ASTM 536



Pump Options

________________________________________________________________________________________________________________________

OPTIONS DETAILS
ORIENTATION OPTIONS Right Hand: INLET is to the right, when looking from driven side
Left Hand: INLET is to the left, when looking from driven side
PORTING OPTIONS GNX: Top Outlet: Outlet 90º offset from inlet
GNXH: Side Outlet: Outlet 180° inline porting
CONNECTION OPTIONS NPT (threaded)
Welded, ANSI Flange (Cl 150 RF)
MOUNTING OPTIONS Pump Only
Unit: Pump, Motor, Baseplate, Couplings, Guards
SEALING OPTIONS Blackmer single mechanical seal



Vane Options

________________________________________________________________________________________________________________________

MATERIAL TEMPERATURE LIMITS VISCOSITY
Duravane -25°F to 240°F (-32°C to 115°C) 1 - 4,250 cP
EC Laminate -25°F to 240°F (-32°C to 115°C) 1 - 4,250 cP
Cast Iron -25°F to 240°F (-32°C to 115°C) 105 - 4,250 cP



Elastomer Options

________________________________________________________________________________________________________________________

MATERIAL TEMPERATURE LIMITS
FKM -15°F to 240°F (-26°C to 115°C)
PTFE - SS Spring 0°F to 240°F (-18°C to 115°C)
Buna-N -25°F to 240°F (-32°C to 115°C)



Maintenance Kits

________________________________________________________________________________________________________________________

MODEL(S) DESCRIPTION PART NUMBER
GNX2A, GNXH2A Kit - Maintenance 898908
GNX2.5A, GNXH2.5A Kit - Maintenance 898909
GNX3A, GNXH3A Kit - Maintenance 898958
GNX4A, GNXH4A Kit - Maintenance 898959

Resources

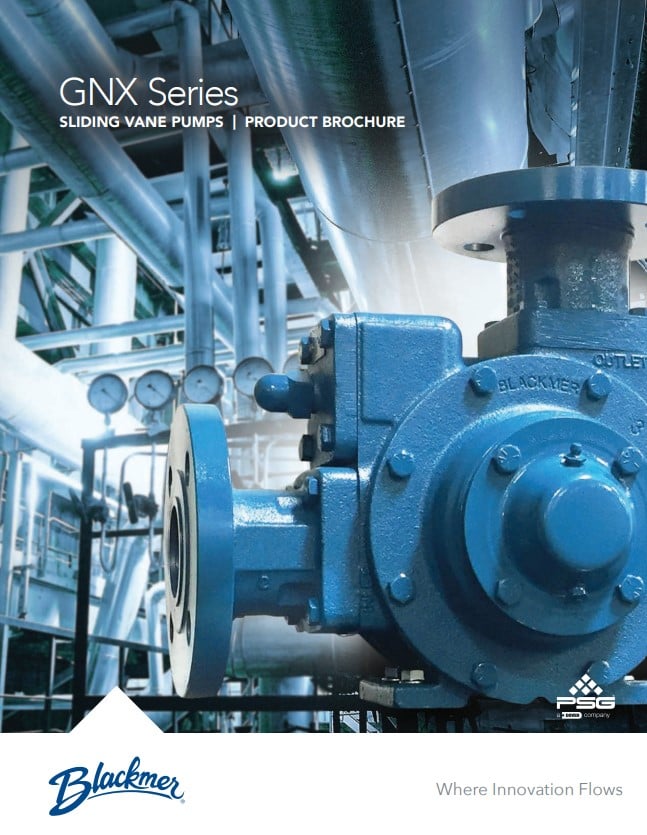

Blackmer GNX Series Sliding Vane Pumps - Brochure

Blackmer GNX Series Sliding Vane Pumps - Brochure

Download

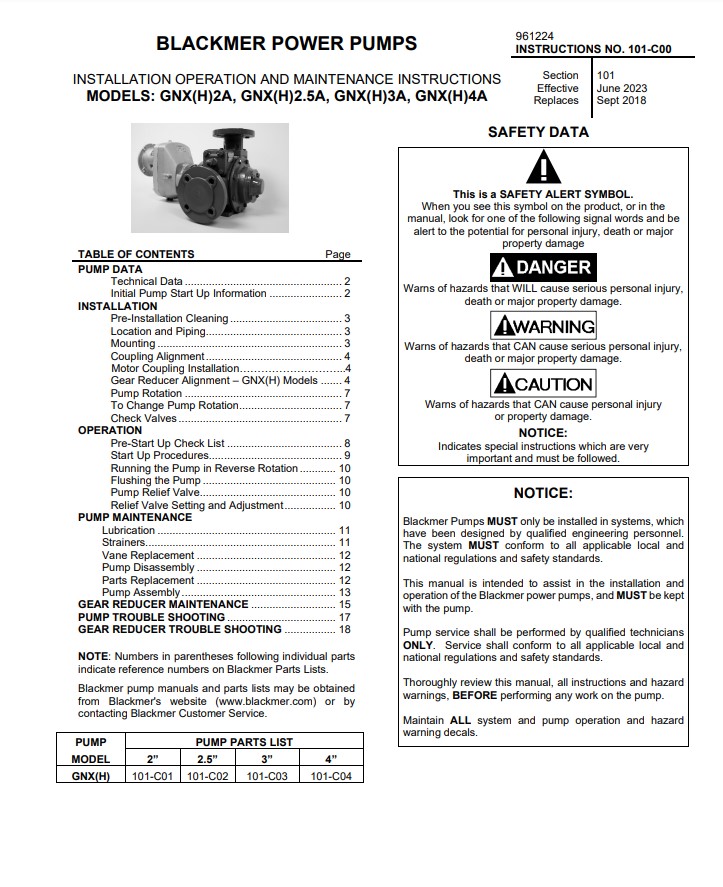

Blackmer GNX Series Sliding Vane Pumps - IOM

Blackmer GNX Series Sliding Vane Pumps - IOM

Download
