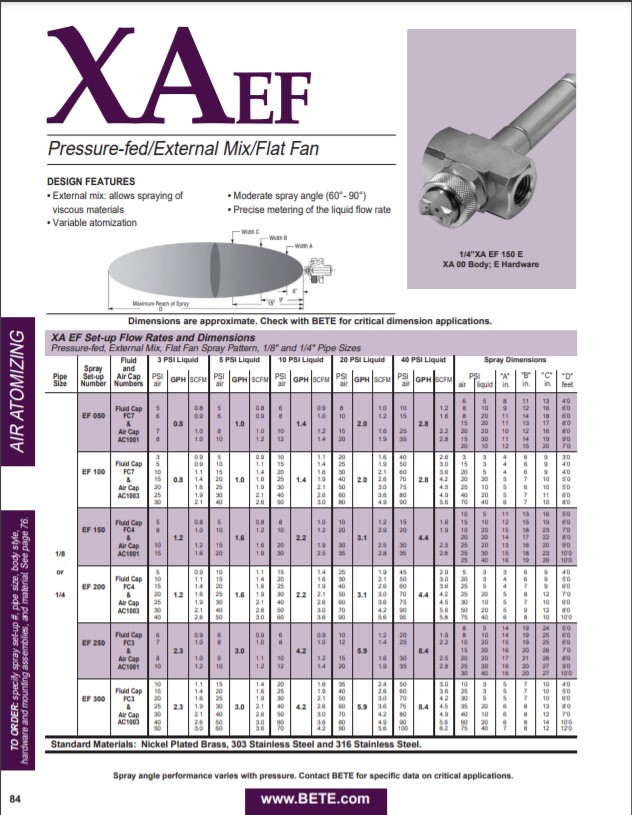

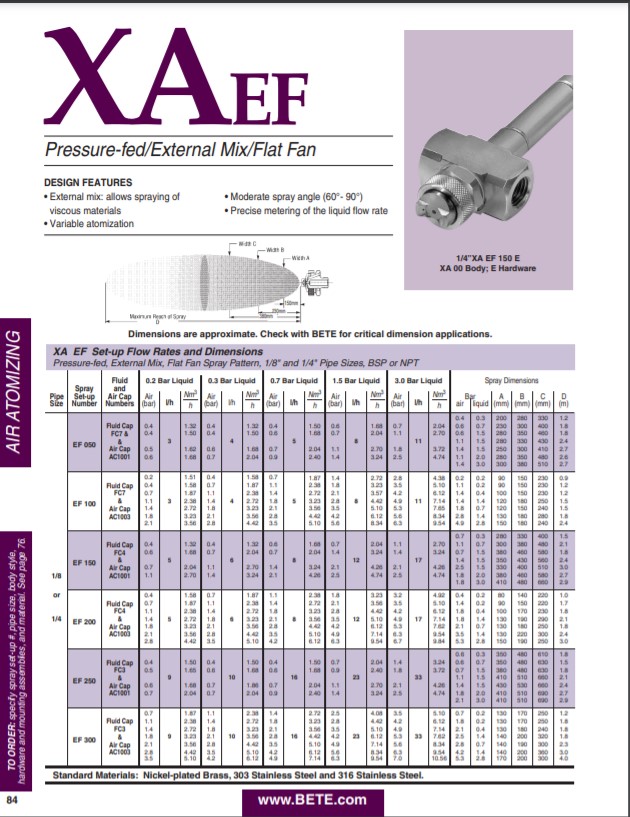

External Mix, Pressure-Fed Pneumatic Spray Nozzles
BETE XAEF spray nozzles uses liquid that is supplied under pressure in a pressure-fed system and sent to either internal or external BETE XA spray nozzles. Air and liquid regulators control the fluid delivery pressure, while the air filter and liquid strainer ensure that the supplied fluids are of high quality. Operational control is kept by manual or solenoid valves combined with the various hardware assemblies.
Design Features of BETE XAEF Spray Nozzles
- External mix: allows for the spraying of viscous material
- Varying atomization
- Moderate spray angle (60° to 90°)
- Exact metering of the liquid flow rate
Spray Patterns
- Fan Spray
- Air Atomizing
| Available Spray Angle | Materials | Available Connection Types |
| 75° | Nickel-plated Brass, 303, 316, Nickel-plated Brass / 304, 303 / 304 |
|
BETE XAEF Flat Fan Air Atomizing Spray Nozzles Video
Medium angle, Medium flow
Common Applications
- Air Atomizing
- Air Conditioning
- Coating
- Concrete Curing
- Cooling: Evaporative
- Fogging – Humidification
- Lubrication
- Misting
- Moistening
- Odor Control
- Scrubbing: Conditioning
- Scrubbing: Dry
