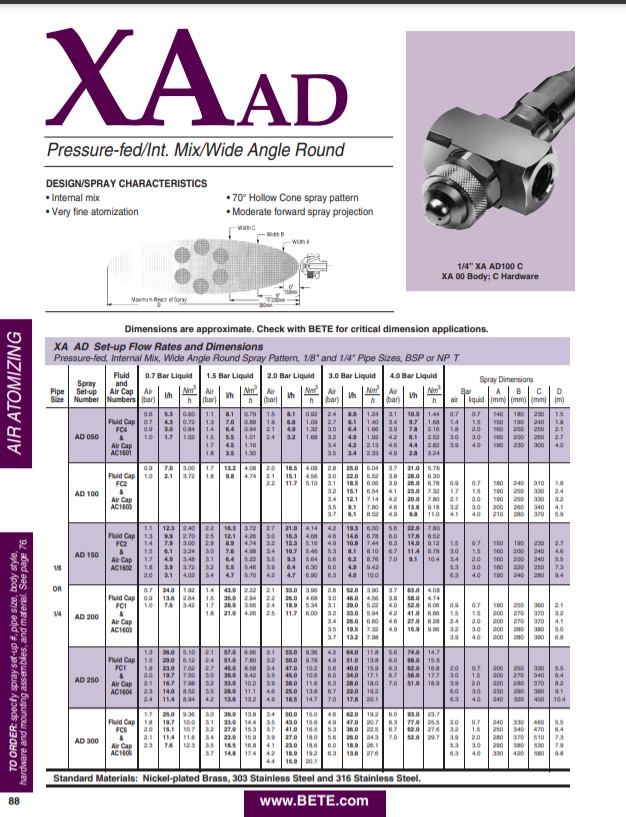

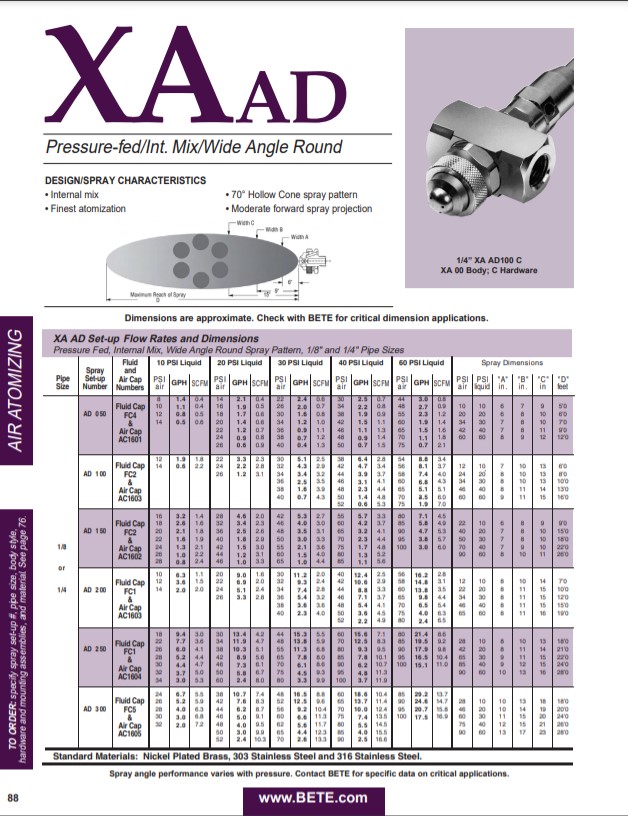

BETE XAAD Hollow Cone Air Atomizing Spray Nozzles

Internal Mix, Pressure-Fed Pneumatic Spray Nozzles

BETE XAAD spray nozzles use the energy in compressed air to produce highly atomized sprays at low flow rates. These nozzles produce eight distinctly different types of sprays, dependent on which interchangeable air and fluid cap is selected. The spray type and flow rate are determined by the “set-up”. a specific combination of one air cap and one fluid cap.

Design Features of BETE XAAD Spray Nozzles

• Internal mix
• Very fine atomization
• Moderate forward spray projection

Spray Characteristics

• The liquid is supplied under pressure in a pressure-fed system and sent to either internal or external spray nozzles from the BETE XA Series. Air and liquid regulators control the fluid delivery pressure, while the air filter and liquid strainer ensure that the supplied fluids are of high quality. Operational control is kept by manual or solenoid valves combined with the various hardware assemblies.
• Liquid and air streams are mixed inside the nozzle and exit through the same opening creating a hollow cone spray pattern.
• The streams are not independent; airflow changes will affect the liquid flow.


Spray Patterns

• Hollow Cone
• Air Atomizing


BETE XAAD Spray Nozzle Applications

• Air Atomizing
• Air Conditioning
• Coating
• Concrete Curing
• Cooling: Evaporative
• Fogging
• Humidification
• Lubrication
• Misting
• Moistening
• Odor Control
• Scrubbing: Conditioning
• Scrubbing: Dry
