BETE MP MaxiPass Full Cone, Ultimate Clog-Resistant Spray Nozzles for Cooling and Quenching
- Ultimate clog-resistant design with largest free passage available in a full cone nozzle
- Two unique S-Shaped internal vanes, as opposed to x-vane-style nozzles, allow for maximum free passage of particles
- High energy efficiency
- Easily handles dirty, lumpy liquids
- Male and female connections
- Flanged connection available
- High-reliability spray performance under the most difficult conditions
- U.S. Patent
Spray Characteristics of BETE MP MaxiPass Spray Nozzles
- High reliability spray performance under the most difficult conditions
- Full Cone – Square patterns to special order
- Design pressure 20 psi; Spray pattern data varies with pressure. Please call us with any questions.
- The spray angle of wide and medium angle whirl nozzles is affected by increasing pressure.
- Contact John Brooks Application Experts when using the MaxiPass full cone nozzle above 40 PSI (3 bar).
How Spray Pattern for the BETE MaxiPass is Achieved
- Atomization is achieved by the water being spun inside the nozzle and then exiting an orifice
- Produces a medium to coarse droplet size
- More uniform pattern than spiral nozzles
| Available Spray Angles | Flow Rate Range |
| 30 - 120° | 0.697 to 1510 gpm |
| Available Connection Types | Materials |
|
PVC, Polypropylene, CPVC, PVDF, Brass, 316, Duplex 2205, A494 CW6MC (cast Nickel Alloy 625), A494 CW2M (cast Nickel Alloy C-276), A494 CX2MW (cast Nickel Alloy C-22), A494 CU5MCuC (cast Nickel Alloy 825), PTFE, UHMW PE, Cobalt Alloy 6 |
Full Cone
Select a nozzle number below for performance graph, drawings, and to request a quote.

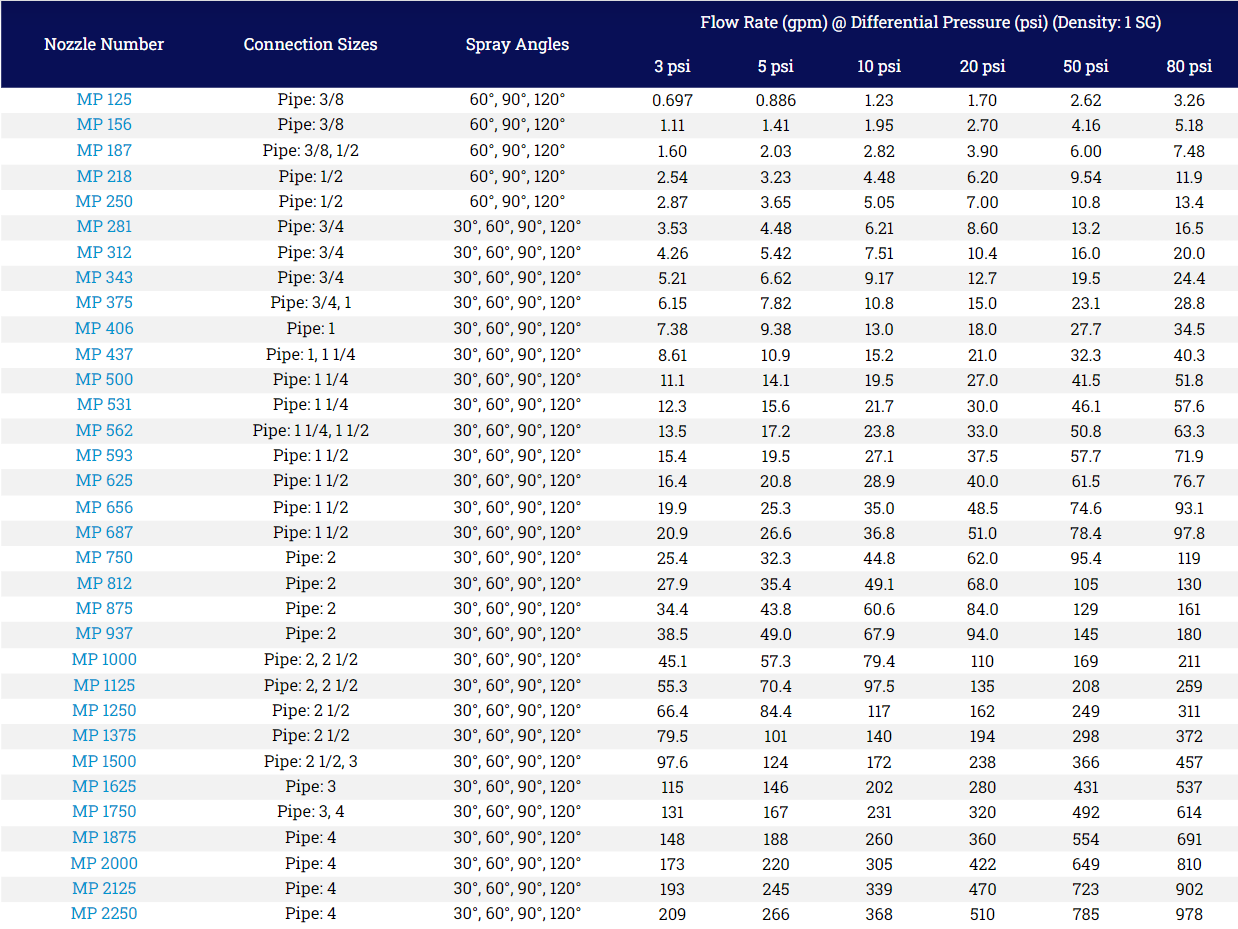

Flow rate (gpm/lpm) is calculated at differential pressure (psi/bar).

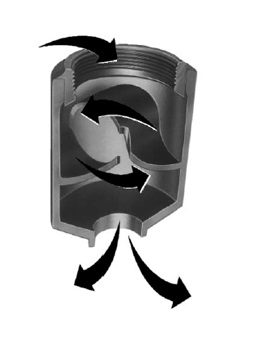

A cutaway view of the BETE MaxiPass full cone nozzle showing the S-shaped vanes which enable the nozzle to successfully handle large particles without clogging.
A comparison of the free passage available with the BETE MaxiPass full cone nozzle compared to the free passage of a traditional full cone nozzle. The BETE MaxiPass full cone nozzle is designed to pass solid particles which are 2-3 times larger in diameter than particles that will pass through a traditional full cone nozzle.
