Flat Fan Air Nozzles for Drying and Blow-off Applications
Design Features:
– Controlled wide uniform distribution and high impact coverage of compressed air
– Can be mounted individually or side-by-side for greater coverage
– Efficient air flow rates with unique eductor feature
– Safe operation—meets OSHA specifications for noise and deadhead pressure
– 1/4″ male connection is molded to fit either NPT or BSP
– Up to 2dB quieter than competing designs
– Rugged construction of Ryton® or ABS plastic. Ryton® to 300° F (149° C) at 40 psi (3 bar)
– Maximum operating pressure 100 psi (7 bar)
Spray Characteristics of the Bete FINZ Spray Nozzle:
| Air Flow Rates | Flow Rate Range |
| 4 to 41 SCFM at 10 to 90 psi | Maximum operating pressure 100 psi (7 bar) |
| Available Connection Types | Materials |
| •¼” Male NPT, BSP | •Ryton® rated to 300 °F (149 °C) at 40 psi (3 bar) •ABS rated to 155º (68 ºC) at 100 psi (6.9 bar) |

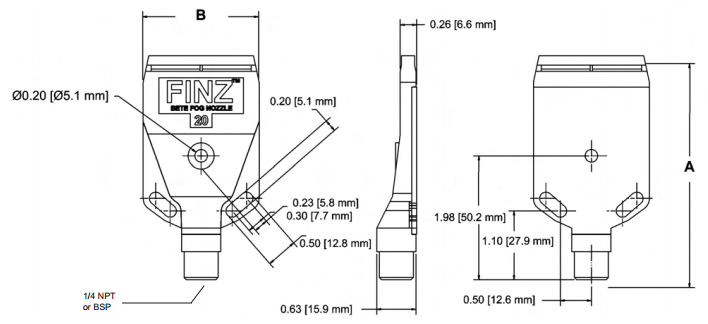

Bete FINZ Drawing:
