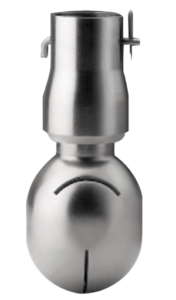

Alfa Laval Sani Rotary Spray Heads

SaniMega  |  SaniMagnum  |  SaniMidget  |  SaniMicro for Hygienic Applications

Engineered for hygienic applications, Sani Rotary Spray Heads from Alfa Laval offer exceptional cleanability and drainability and easy, cost-effective maintenance.

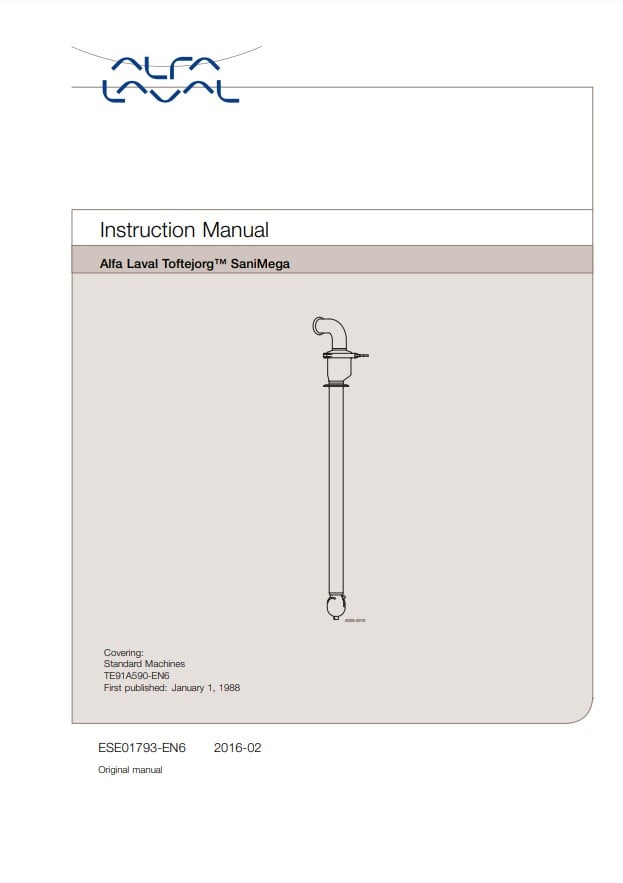

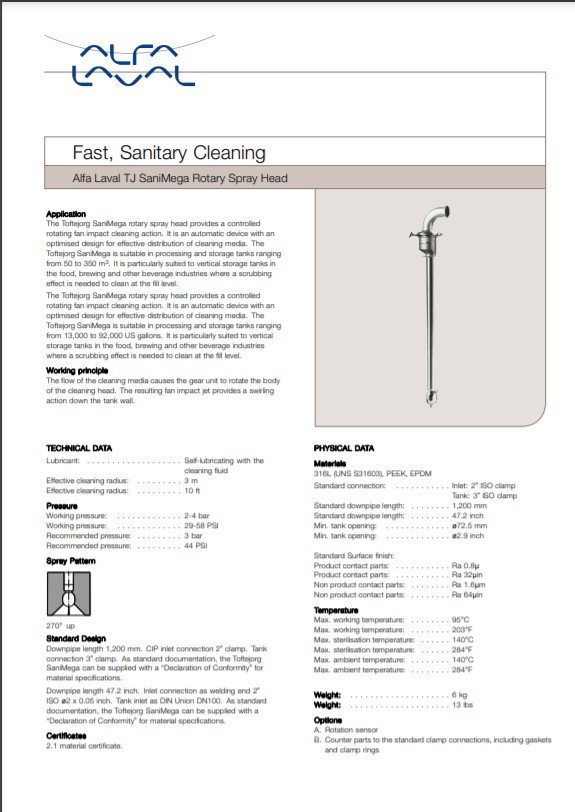

• SaniMega
  • Wetting Radius:  18 ft. Maximum
  • Impact Cleaning Radius:  8.6 ft. Maximum

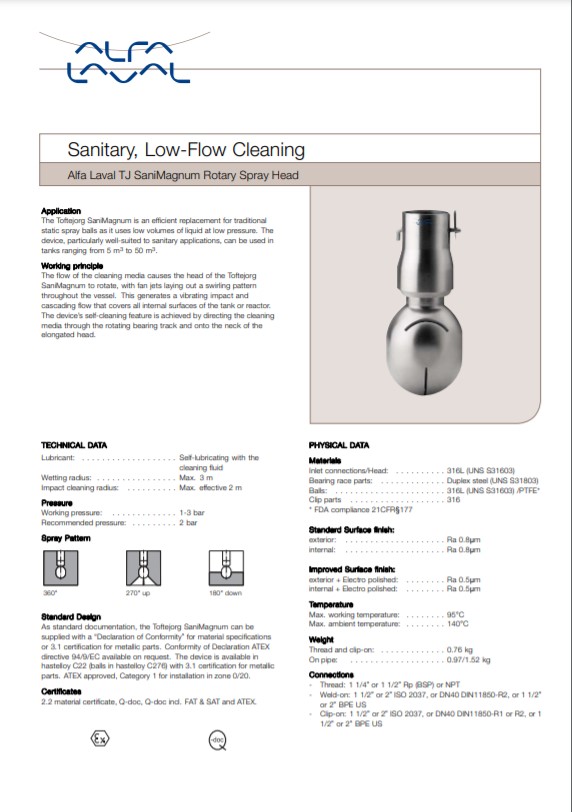

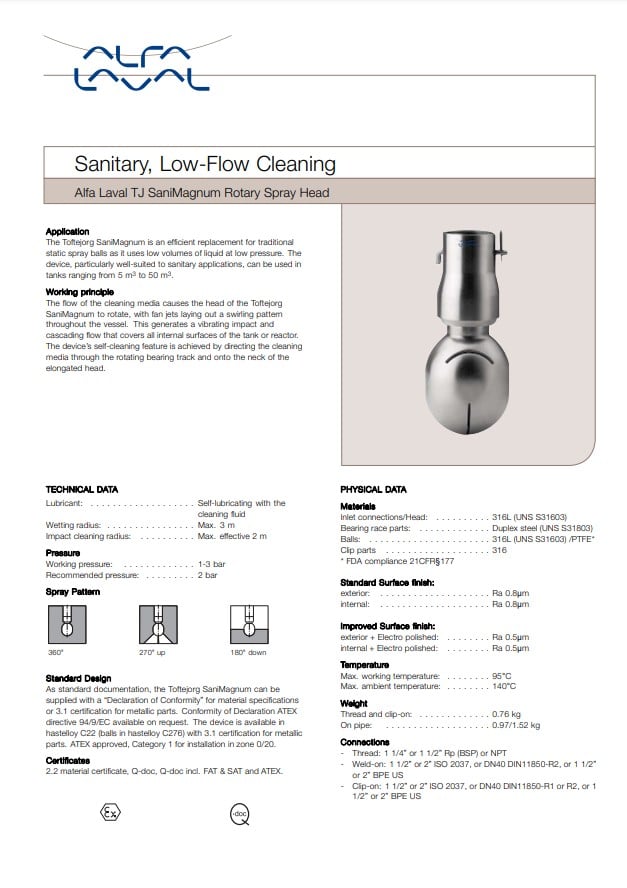

• SaniMagnum
  • Wetting Radius:  9.8 ft. Maximum
  • Impact Cleaning Radius:  6.5 ft. Maximum

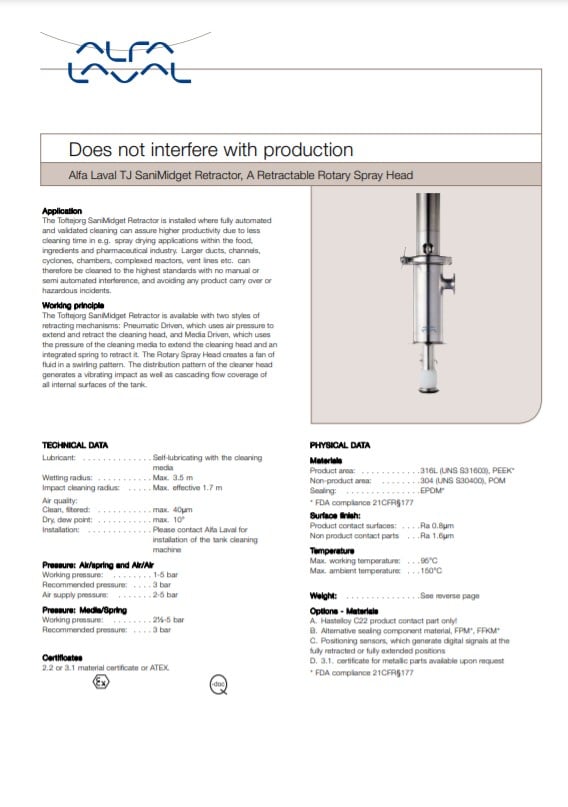

• SaniMidget
  • Wetting Radius:  9.8 ft Maximum
  • Impact Cleaning Radius:  4.6 ft Maximum

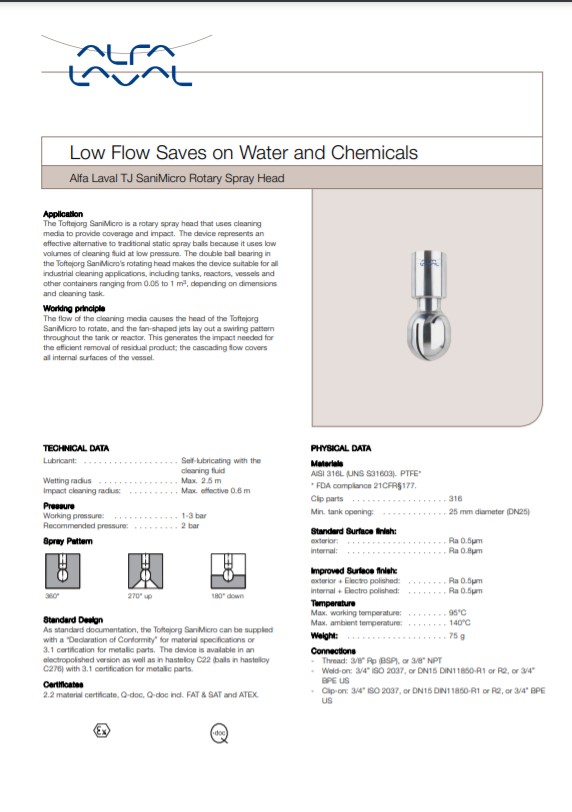

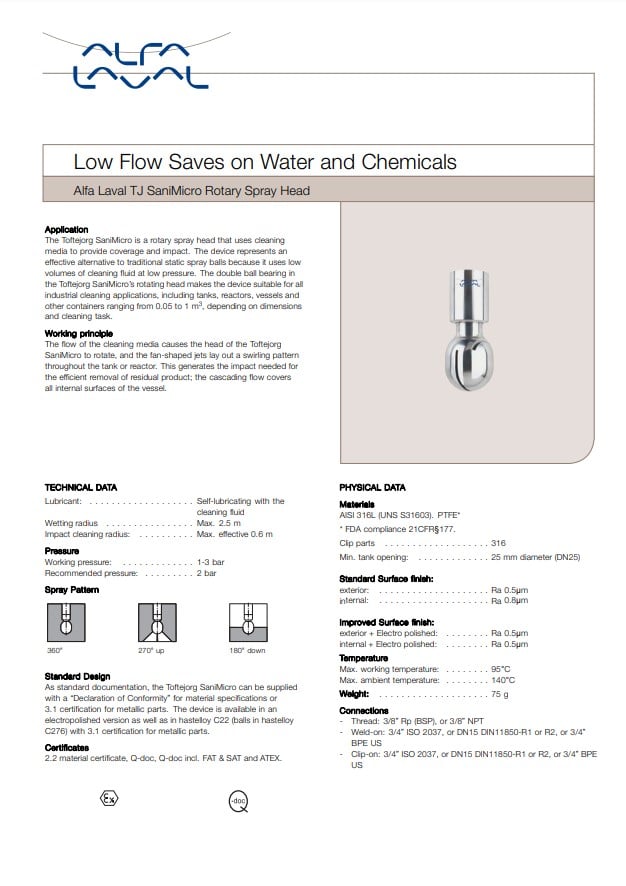

• SaniMicro
  • Wetting Radius:  8.2 ft Maximum
  • Impact Cleaning Radius:  1.9 ft Maximum

Cost-Effective Cleaning

Alfa Laval Sani Rotary Spray Heads for higher cleaning efficiency than that offered by static spray balls.  It is easy to upgrade to rotary spray head technology, simply unclip the static spray ball and replace it with a new clip-on rotary spray head. As the spray head rotates, its fans produce a variable falling film, which has higher heat and mass transfer coefficients than the falling film produced by the static spray ball. This enables the optimization of cleaning procedures and significant savings on water, chemicals and energy.

Efficient Residue Removal

To achieve the best cleaning results,  Sani Rotary Spray Heads use a spray pattern to ensure the dynamic and effective distribution of rinse water to the inner tank surfaces. The impact from the rotating fans and improved mass and heat transfer provide efficient residue removal after production. Self-draining and self-cleaning, inside and out, all rotary spray head devices comply with Good Manufacturing Practice.

Benefits

An Economical and Environmentally Sound Choice

With perfectly flushed bearings and crevice-free design, Alfa Laval Sani Rotary Spray Heads effectively clean tanks using less water, less energy and less cleaning agents than static spray balls. This not only helps reduce consumption of high-purity water and chemicals, but boosts your company’s environmental profile.

Performance Reliability and Long Service Life

Designed with minimal internal pressure loss, Alfa Laval Sani Rotary Spray Heads rotate at pressures of less than 0.1 bar; however, the recommended operating pressure is between 2 and 3 bar. For over half a century, rotary spray head technology has proven successful in providing reliable and repeatable cleaning performance and a long service life.

Low Maintenance, Minimal Downtime

Generally speaking, routine inspection is the only maintenance required for Alfa Laval Sani Rotary Spray Head devices. These devices are so reliable that a single device in many cases can meet the requirements of a plant over its entire lifetime. No spare parts are likely to be needed for these devices.

High Product Integrity

To ensure product integrity, all Alfa Laval  Sani Rotary Spray Head devices are made of safe and non-reactive hygienic materials. All materials made of stainless steel are fully traceable in accordance EC No. 1935/2004. All non-metallic parts used comply with FDA requirements 21CFR § 174; non-metallic parts of rotary spray heads used for the Biopharm applications are certified in accordance with USP Class VI regulations. Upon request, 3.1 certificates can be supplied for those tank cleaning devices that meet the EN10204 standard.

Total Peace of Mind with Complete Documentation for Validation

All equipment and components in the Alfa Laval BioPharm portfolio can be  supplied with Alfa Laval Q-doc, a comprehensive documentation package that provides full transparency of sourcing, production and supply chains as well as full traceability of all changes in material, manufacturing procedures or spare parts. This smoothes process validation by providing factual support to substantiate GDP (Good Documentation Practice) for every aspect of BioPharm equipment supply and provides customers with high-quality Alfa Laval products backed by a no-risk guarantee. The Q-doc package comprises equipment manuals, product/performance test, quality and manufacturing procedures, relevant material certificates, traceability documentation, and the necessary parts and service information. This attention to detail maximizes uptime and minimizes risk.

How it Works

Alfa Laval’s rotary spray heads use the cleaning fluid itself to provide coverage and impact. The physical flow of the cleaning media causes the rotary spray head to rotate, with fan jets laying out a swirling pattern across the inner surface of the vessel.

These jets provide a combination of physical impact and a variable falling film of cleaning fluid that covers all the internal surfaces of the tank or reactor. The variable falling film has higher heat and mass transfer coefficients than the falling film produced by the static spray ball.

The spray head also cleans itself by directing the cleaning media through the rotating bearing track and onto the neck of the elongated head.

Rotary spray heads are a cost-effective alternative to traditional static spray balls because they use only small volumes of cleaning fluid at low pressure.

Certification:	Multi Range	Sani Range	Sani SB Range
ATEX		X
2.1 material cert.	X	X	X
3.1 material cert.		X	X
Q-doc.		X	X
3A			X
EHEDG			X
Connection:
Clip-on	X	X	X
Weld-on	X	X	X
Thread	X	X
Surface Finish :
0.8 ra	X	X	X
0.5 ra		X	X
Spray Pattern:
180° Down	X	X
270° UP	X	X	X
360°	X	X	X
