Exploring the Advantages of Low-Pressure Sewer Systems

Low-pressure-sewer-systems-with-grinder-pumps

One of the most fundamental decisions in improving wastewater infrastructure within the municipal industry is choosing between a gravity or low-pressure sewer system. While gravity sewer systems are a common choice, low-pressure sewer systems featuring components like sewage grinder pumps are becoming increasingly popular for their numerous benefits.

The Challenge: Why Consider a Different Design?

Constructing sewage systems in areas with a high-water table, rocky ground, or aggressive soil presents significant challenges, leading to heightened costs and increased maintenance efforts.

Gravity sewer systems depend on natural downward slopes, posing a challenge in flat terrains where achieving the required slope for efficient wastewater flow becomes problematic. In some instances, deep trenching and excavation are needed, which can result in higher installation costs, particularly in densely populated urban areas.

With urban development on the rise, gravity sewer systems lack the adaptability and flexibility to adjust to these ongoing changes. These systems can be susceptible to infiltration and inflow problems where the groundwater enters the systems during heavy rainfall. This can potentially overwhelm the capacity, leading to overflows.

These challenges underscore the limitations of traditional gravity sewer systems in addressing the diverse and demanding terrains found in specific geographical settings. Overcoming such obstacles calls for innovative solutions, such as low-pressure sewer systems, which offer greater flexibility and cost-effectiveness in challenging landscapes, growing communities, and varied conditions.

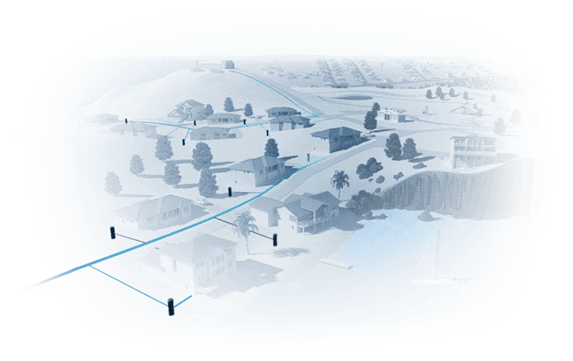

EOne-low-pressure-Sewer-Systems-1



Low-Pressure Sewer Systems: A Modern Solution

Low-pressure sewer systems facilitate the movement of wastewater through a network of small-diameter pipes, employing minimal pressure to ensure efficient transport. At the heart of this innovative solution is a sewage grinder pump, which plays a pivotal role in breaking down solids within the wastewater. By reducing raw sewage into smaller, manageable particles, sewage grinder pumps enable a smoother flow of wastewater from homes and businesses, contributing to a seamless and effective disposal process.

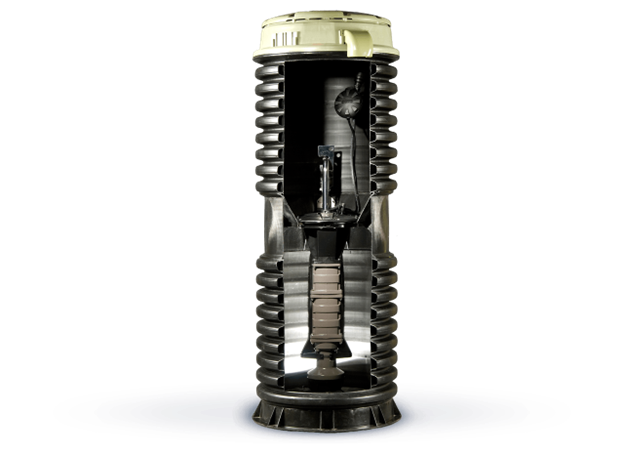

Sewage Grinder Pumps: How they Work

The process starts with gravity-fed wastewater from each building into a low-pressure sewer system. The sewage grinder pump reduces the size of raw wastewater by breaking it down into tiny particles which can easily pass through inch-and-a-quarter pipes.

After grinding and pressurizing, the resulting wastewater slurry flows through a sealed pipe network. This network is strategically installed below the surface or frost line and follows the land's natural shape. Due to pressurization, the wastewater can be transported over horizontal distances exceeding 2 miles/3.5 km or ascend uphill by 185 ft/56 m. This system can also be added to a more extensive network like a gravity system, pressure main, or wastewater treatment plant.



EOne-grinder-pump

Advantages of Low-Pressure Sewer Systems

  1. Cost-Effective Installation: Shallow excavation depths and smaller pipes contribute to lower installation costs than gravity sewer systems.
  2. Flexible Layout: Adaptable to challenging terrains, low-pressure sewer systems can follow the land's natural contour.
  3. Reduced Inflow and Infiltration: Sealed systems minimize wet-weather flow increases, ensuring consistent performance.
  4. Reduced Risk for Blockages: Individual grinder pumps mitigate the risk of backups, providing a reliable and efficient solution.
  5. Reduced Odors: Sealed, low-pressure sewer systems reduce odors and create a more pleasant environment for residents.
  6. Easy Expansion: Growing communities can easily expand low-pressure sewer systems to accommodate new developments or additions.

Low-pressure sewer systems are a modern and adaptable solution for challenging terrains, offering many benefits and options for managing wastewater in the future.

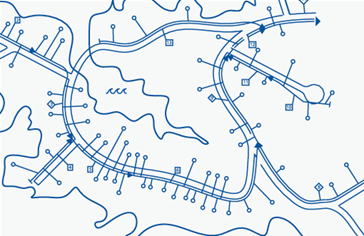

EOne-topography-map

Free Sewer System Design Analysis from John Brooks Company

Are you starting a new venture? Send us the topo map for your next challenging project.

Discover how an E/One Pressure Sewer System reduces upfront and installed expenses, ensuring consistent performance with zero maintenance required.

Contact one of our application experts today!
